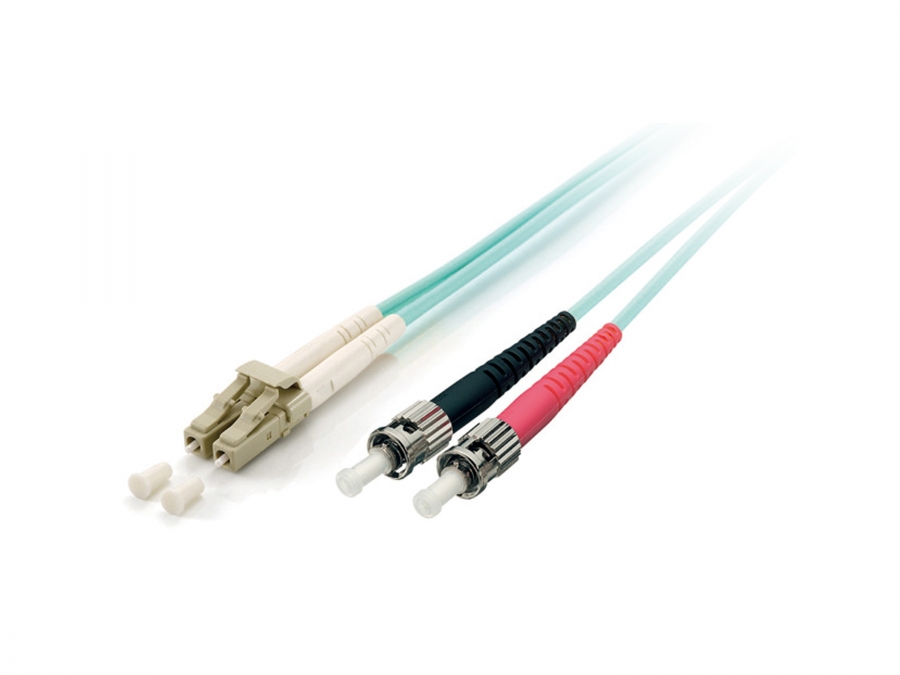

Equip LWL Patchkabel LC->ST 15.00m Multimode Duplex OM3 turq Polybeutel

EQUIP

255217

New

The equip®Fiber Optic Adapter Cable is made of superior materials to ensure an insertion loss, return loss, and endface geometry connection. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Cable length15 m
Fibre optic typeOM3
Connector 1LC
Connector 2ST
Connector 1 genderMale
Connector 2 genderMale
Product colourTurquoise
Jacket materialLow smoke zero halogen (LSZH)
Core diameter50 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Connector materialCeramic
Country of originChina
Sustainability certificatesRoHS
Doesn't containHalogen
Weight147 g
Package width335 mm
Package depth30 mm
Package height250 mm
Package weight159 g
Package typeBag
Master (outer) case width400 mm
Harmonized System (HS) code85447000
Master (outer) case length300 mm
Master (outer) case height400 mm
Master (outer) case gross weight12.7 kg
Products per master (outer) case80 pc(s)
Attenuation (max)2.3 dB/km

9/125 62.5/125 50/124 MTP
