Slot bracket 1 x 19 pin USB 3.1 pin header female internal 1 x USB Type-C™ female + 1 x USB Type-A female external

DELOCK

84930

New

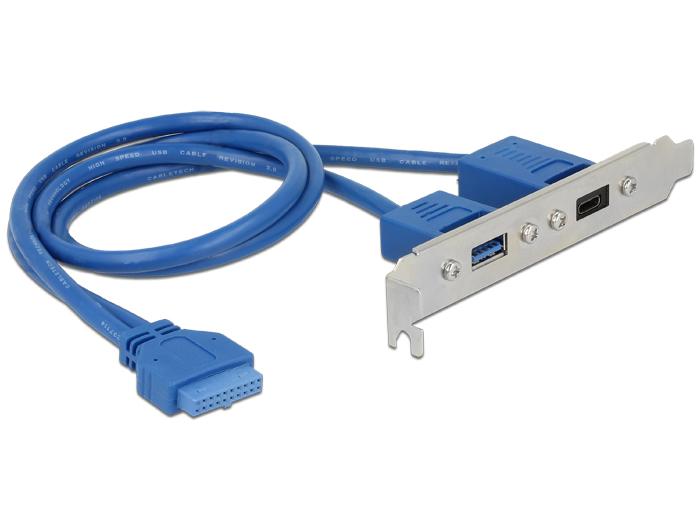

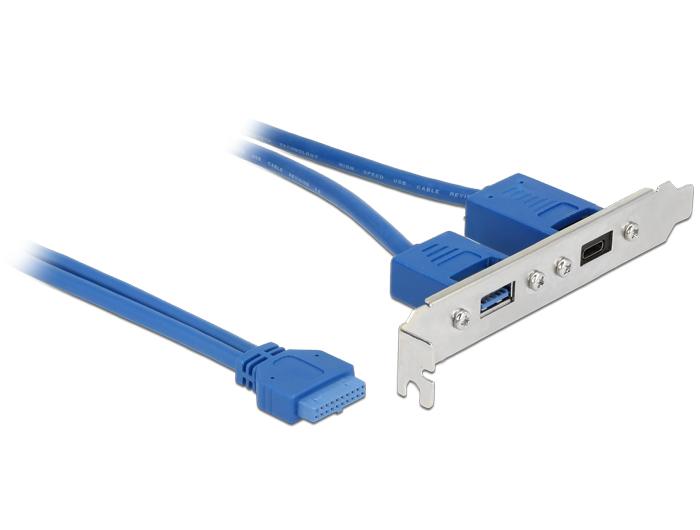

This slot bracket by Delock expands the PC by one external USB Type-C™ port and one USB Type-A port. The cable of the slot bracket can be connected internally to the motherboard with a 19 pin USB 3.1 pin header. Thus the internal connection will be lead outside, in order to connect devices with USB Type-C™ and USB Type-A connector to the computer.

More details

Description:
This slot bracket by Delock expands the PC by one external USB Type-C™ port and one USB Type-A port. The cable of the slot bracket can be connected internally to the motherboard with a 19 pin USB 3.1 pin header. Thus the internal connection will be lead outside, in order to connect devices with USB Type-C™ and USB Type-A connector to the computer.

Specification:
• Connector:
internal:
1 x 19 pin SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) pin header female
external:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A female
• Pitch distance: 2.00 mm
• Screw type: M3
• Cable gauge:
28 AWG data line
24 AWG power line
• Cable diameter: ca. 5.5 mm
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Backward compatible to 19 pin USB 3.0 pin header with a data transfer rate of up to 5
Gbps
• Power output: max. 1.5 A
• Voltage: 5 V
• Slot bracket: standard
• Cable colour: blue
• Cable length incl. connector: ca. 30 cm

System requirements:
• PC with one free slot
• Mainboard with a free 19 pin USB 3.1 pin header male

Package content:
• Slot bracket
