Delock External Enclosure 2 x M.2 Key B > SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) with RAID

DELOCK

42588

New

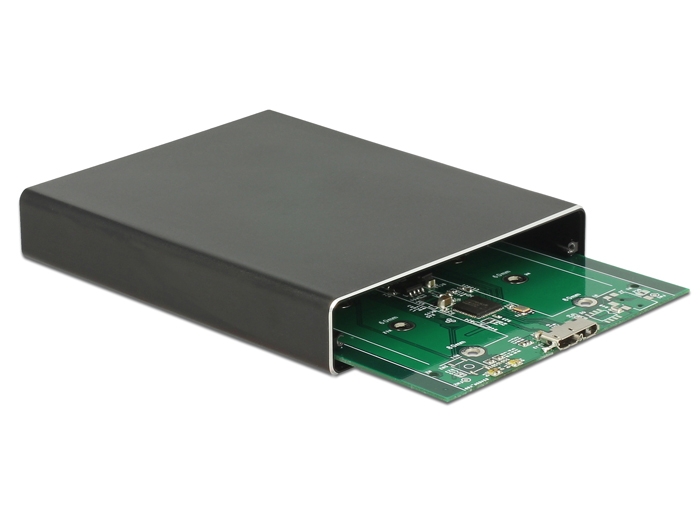

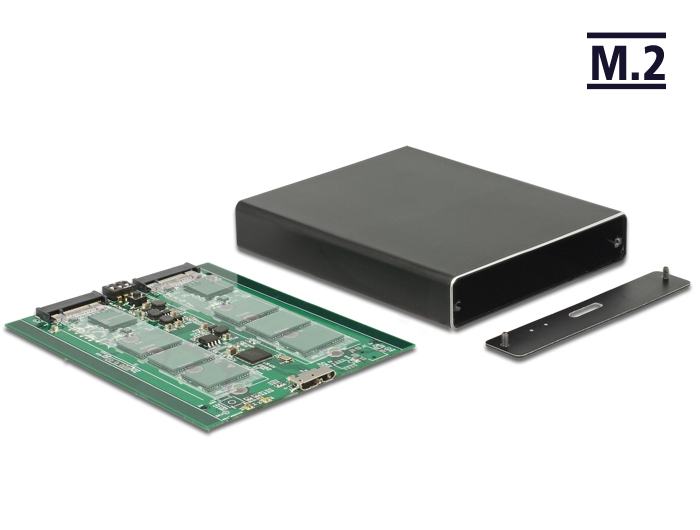

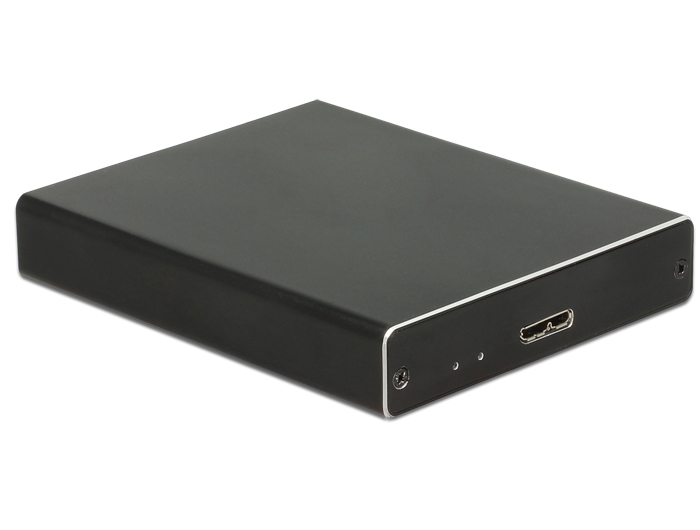

The aluminium enclosure by Delock enables the installation of two M.2 SSD in 2280, 2260, 2242 and 2230 format, which can be connected via USB to the PC or laptop. When using more than one SSD, there is the possibility to use different RAID level.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6, Mac OS 10.12
• PC or laptop with a free USB Type-A port
Specification:
• Connector:
  external: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type Micro-B female
  internal: 2 x 67 pin M.2 key B slot
• Interface: SATA
• Chipset: Asmedia ASM1352R
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B based on SATA
• Maximum height of the components on the module: 1.25 mm application of double-sided
  assembled modules supported
• Supports RAID 0, 1, SPAN, Port Multiplier
• Switch for RAID mode
• Reset button
• Data transfer rate up to 6 Gb/s
• 2 x LED indicator for power and access
• Operating temperature: 0 °C ~ 70 °C
• Storage temperature: -20 °C ~ 70 °C
• Dimensions (LxWxH): ca. 100 x 80 x 17 mm
• Hot Plug, Plug & Play
Package content:

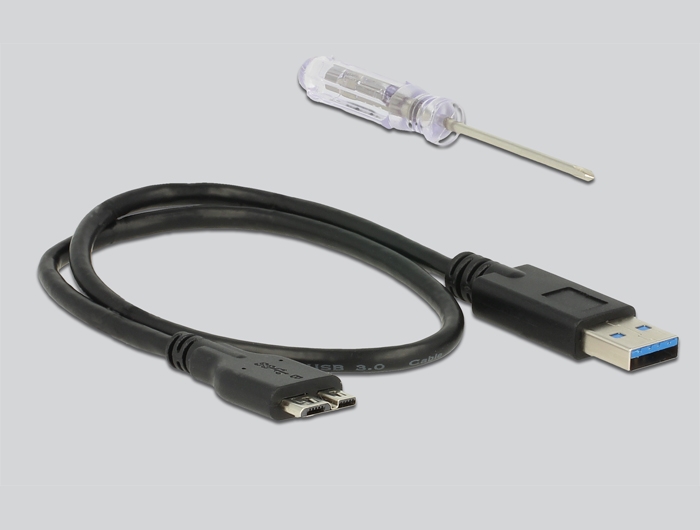

• External enclosure
• Screwdriver, screws
• Cable USB 3.1 Type-A to Type Micro-B, length ca. 40 cm
• User manual
Data sheet:
http://www.delock.de/produkt/42588/pdf.html?sprache=en
