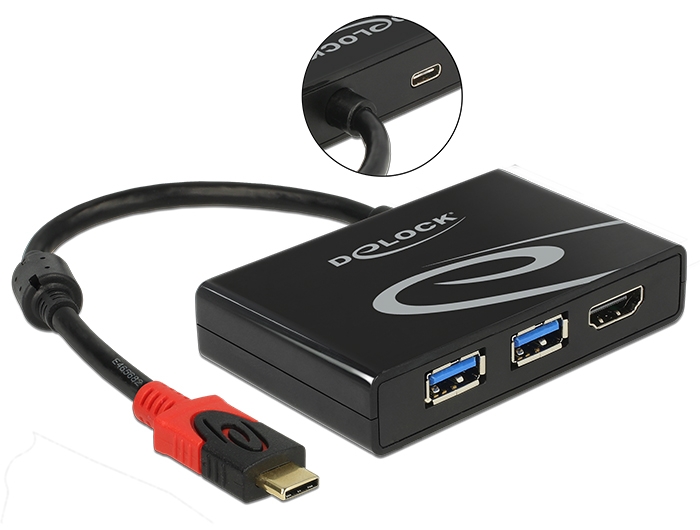

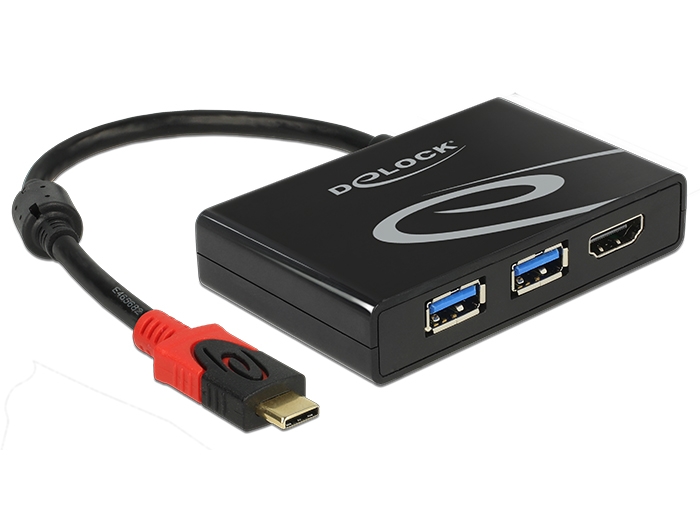

Delock USB 3.1 Gen 1 Adapter USB Type-C™ male > 2 x USB 3.0 Type-A female + 1 x HDMI female (DP Alt Mode) 4K 30 Hz

DELOCK

62854

New

This adapter by Delock is suitable for the connection to a computer with USB-C™ interface and Displayport alternate mode support. It extends the system by two USB 3.0 Type-A interfaces as well as one HDMI interface. The adapter has a USB Type-C™ Power Delivery port. This allows the laptop to be charged while the adapter is in use, as well as providing additional power to the two USB Type-A connectors.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.4.x, Mac OS 10.11
• PC or laptop with a free USB Type-C™ port and Displayport alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Specification:
• Connectors:
  1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ male >
  2 x SuperSpeed USB (USB 3.1 Gen 1) Type-A female
  1 x HDMI-A 19 pin female
  1 x USB Type-C™ Power Delivery female (optional for power supply)
• Chipset: Parade PS176 + VIA VL812
• Displayport 1.2, High Speed HDMI with Ethernet (HEC) and SuperSpeed USB
  specification
• HDMI specification:
- Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected
  hardware)
- Transfer of audio and video signals
- Supports 3D displays
- Supports HDCP 1.4 and 2.2
• USB bus powered
• Plug & Play
• 1 x ferrite core
• Cable length without connectors: ca. 15 cm
• Colour: black
Package content:
• USB-C™ to 2 x USB-A + HDMI Adapter
Data sheet:
http://www.delock.de/produkt/62854/pdf.html?sprache=en
