Delock External Enclosure M.2 Key B 80 mm SSD > USB 3.1 Gen 2 Type-A male

DELOCK

42593

New

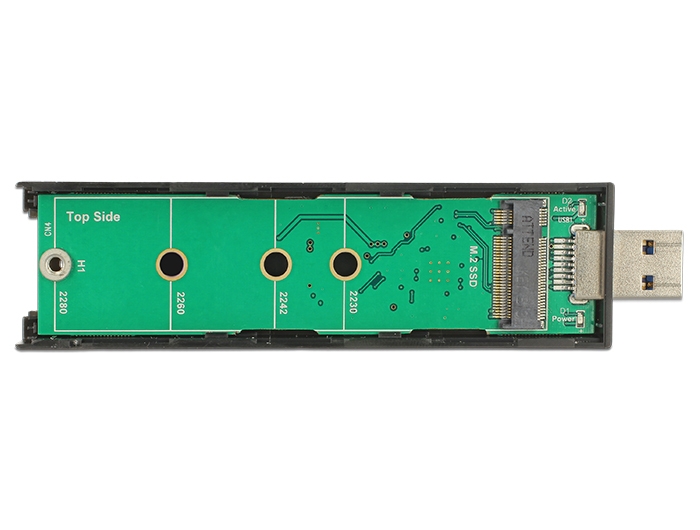

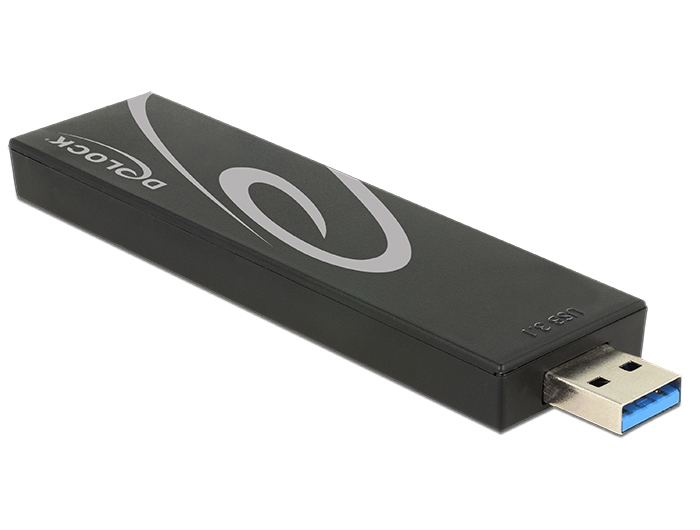

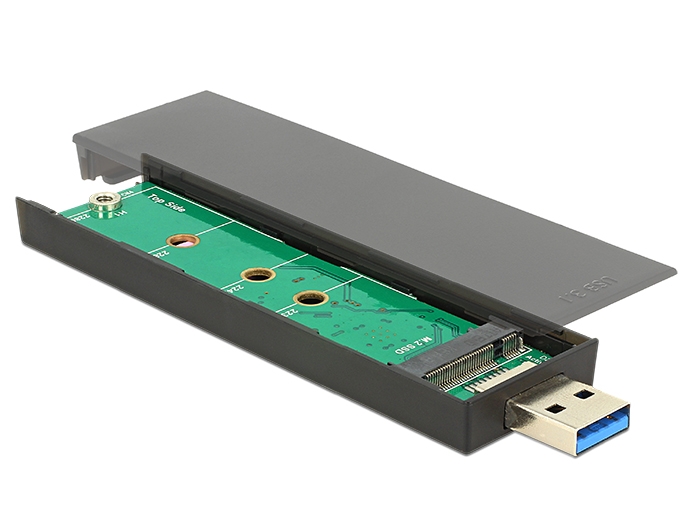

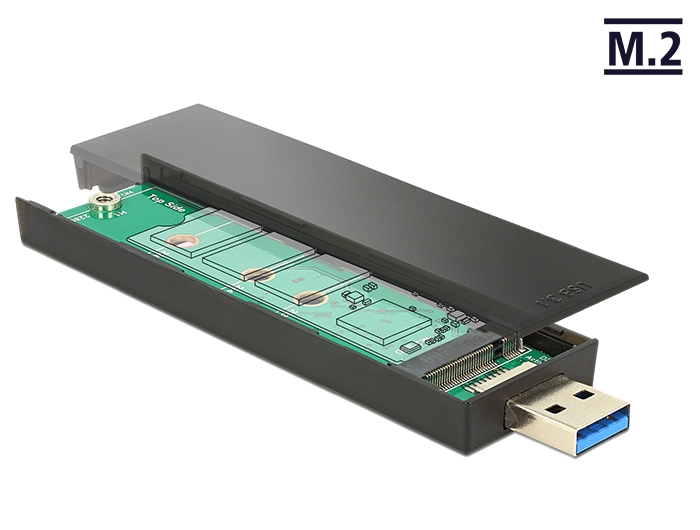

This enclosure by Delock enables the installation of an M.2 SSD in 2280, 2260, 2242 and 2230 format, it can be connected via USB Type-A to the PC or laptop.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6.x
• PC or laptop with a free USB Type-A port
Specification:
• Connectors:
  external: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A male
  internal: 1 x 67 pin M.2 key B slot
• Chipset: Asmedia ASM1351
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B based on SATA
• Maximum height of the components on the module: 1.35 mm,
  application of double-sided assembled modules supported
• Data transfer rate up to 6 Gbps
• LED indicator for power and access
• Maximum power for modules: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 103 x 28 x 10 mm
• Hot Plug, Plug & Play
Package content:
• External enclosure
• Mounting material
• User manual
Data sheet:
http://www.delock.de/produkt/42593/pdf.html?sprache=en
