Delock LTE Antenna SMA plug 5 dBi fixed omnidirectional with magnetic base and connection cable (RG-58, 3 m) outdoor black

DELOCK

12425

New

This LTE antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  700 - 960 MHz
  1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MH/z / 915 MHz
• Antenna gain: 5 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Transmission power: 50 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black

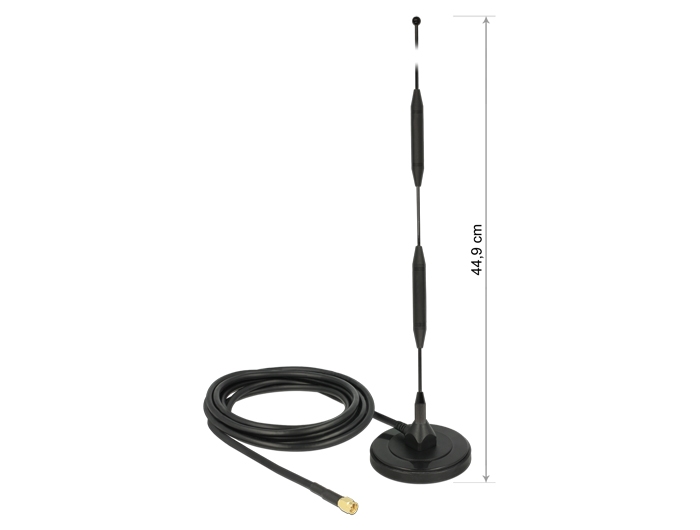

• Antenna length including magnetic base: ca. 449 mm
• Cable: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable attenuation: 0.6 dB @ 1 GHz per meter
• Cable diameter: ca. 4.95 mm
• Cable length incl. connector: ca. 3 m
• Diameter magnetic base: ca. 86.0 mm
Package content:
• LTE antenna
Data sheet:
http://www.delock.de/produkt/12425/pdf.html?sprache=en
