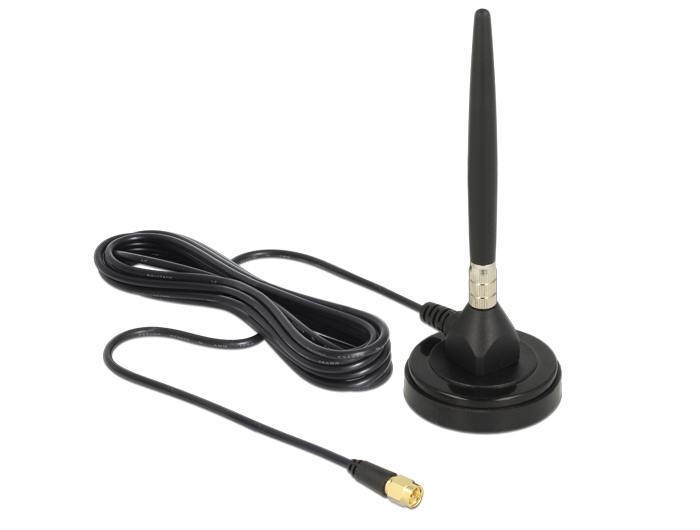

Delock GSM Antenna SMA plug 3 dBi fixed omnidirectional with magnetic base and connection cable (RG-174, 3 m) outdoor black

DELOCK

12421

New

This GSM antenna by Delock allows the usage of different GSM bands indoors and outdoors. It is compatible to UMTS, ZigBee 868 MHz / 915 MHz, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  824 - 960 MHz
  1710 - 2170 MHz
• UMTS, ZigBee 868 MHz / 915 MHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Antenna length including magnetic base: ca. 138 mm
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Diameter magnetic base: ca. 50.0 mm
Package content:
• GSM antenna
Data sheet:
http://www.delock.de/produkt/12421/pdf.html?sprache=en
