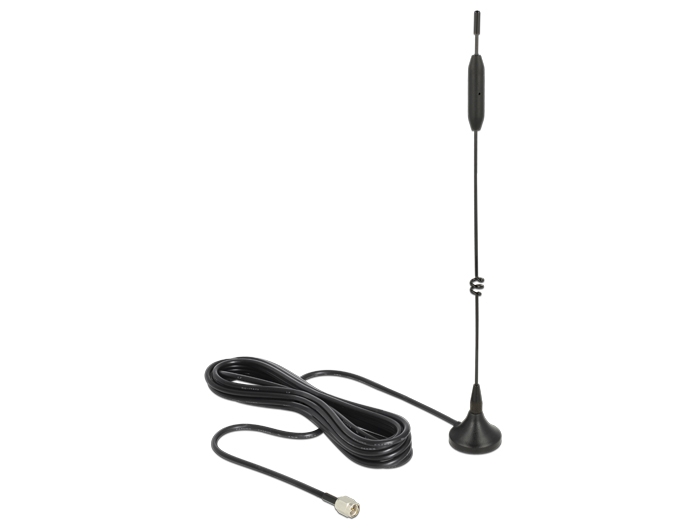

Delock LTE / GSM / UMTS Antenna SMA plug 5 dBi omnidirectional with magnetic base and connection cable (RG-174, 3 m) outdoor bla

DELOCK

12420

New

This antenna by Delock allows the usage of different LTE, GSM and UMTS bands inside and outside. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  850 - 960 MHz
  1700 - 2700 MHz
• ZigBee, Bluetooth, WLAN 2.4 GHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 5 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Antenna length including magnetic base: ca. 241 mm
• Cable: coaxial
• Cable type: RG-174 A/U
• Cable colour: black
• Cable loss: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Diameter magnetic base: ca. 29.4 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12420/pdf.html?sprache=en
