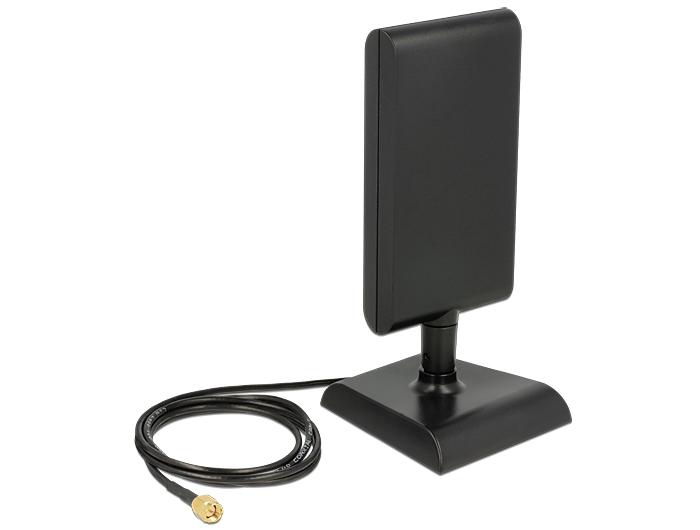

Delock LTE Antenna SMA plug 2 - 4 dBi omnidirectional with magnetic base and connection cable (ULA 100, 1 m) black

Reference 88992

Condition: New

More info

This LTE antenna by Delock can be installed indoors and takes advantage of all LTE bands. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: SMA plug
• LTE band: 1-10; 12; 13; 17-20; 25-27; 29; 33-39
• Frequency range:
698 - 787 MHz
791 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
• Compatible to GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 2 - 4 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Horizontal beam angle: 360°

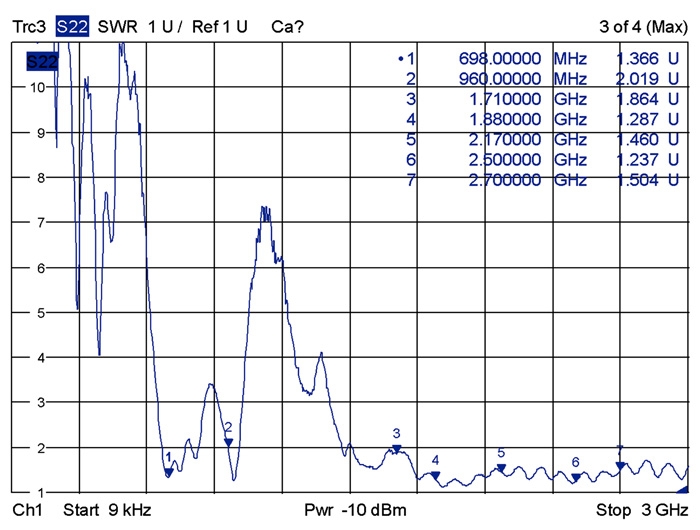

• VSWR: 2.0 - 4.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Antenna length including magnetic base: ca. 16.2 cm
• Features of the base:
magnetic on the bottom
rubberized bottom
wall mountable
• Cable: coaxial
• Cable type: ULA 100
• Cable colour: black
• Cable Attenuation: 1.4 dB @ 2.500 GHz per meter
• Cable diameter: ca. 2.79 mm
• Cable length: ca. 1 m

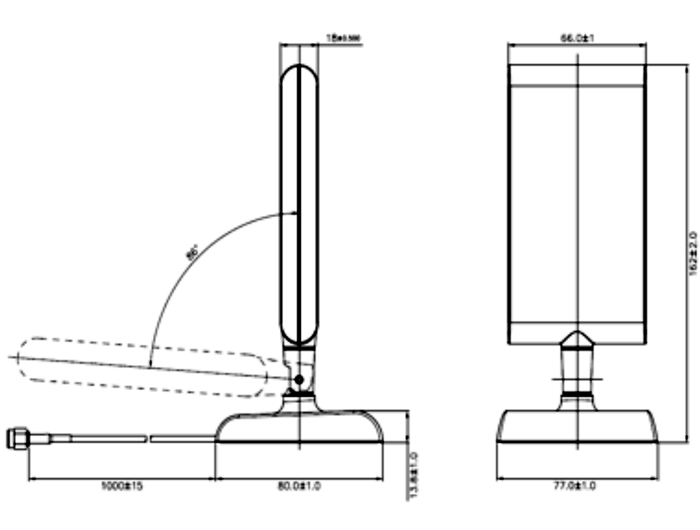

• Dimensions:
antenna (LxWxH): ca. 162 x 66 x 18 mm
base (LxWxH): ca. 80 x 77 x 15 mm

Package content:
• LTE antenna

Data sheet:
http://www.delock.de/produkt/88992/pdf.html?sprache=en
