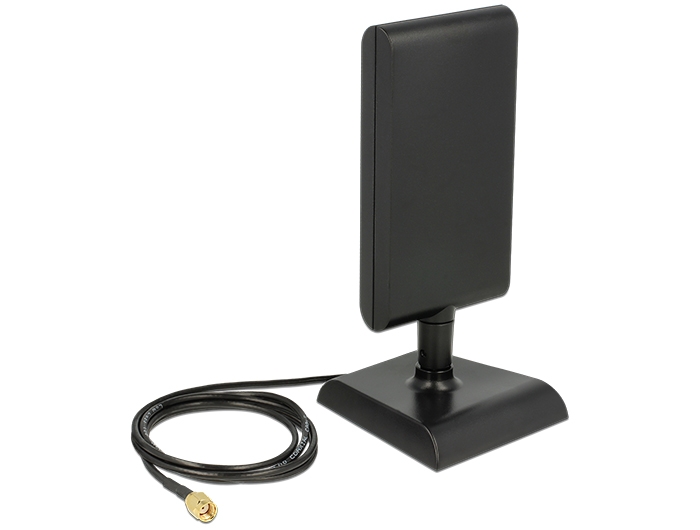

Delock WLAN 802.11 ac/a/h/b/g/n Antenna RP-SMA plug 6 - 9 dBi directional with magnetic base and connection cable (ULA 100, 1 m)

DELOCK

89590

New

• WLAN Antenne extern mit Kippgelenk • Magnetische, gummierte und wandmontagefähige Unterseite • RP-SMA plug • Kabellänge: 1 m • Kabeltyp: ULA 100 • 2,400 ~ 2,500 GHz, 5,150 ~ 5,875 GHz • Maße: LxBxH: 162,00 x 66,00 x 15,00 mm • Gewicht: 122 g • Gehäusematerial: ABS, UV geschützt • Gehäusefarbe: schwarz ?• 6 dBi@2,5Ghz HPBW h/v 70°/70° ?• 8 dBi@5,825Ghz HPBW h/v 50°/60° • op.Temp: -10°C ~ 55°C • VSWR: 2,0 max. • Impedanz: 50 Ohm
System requirements:
• Device with a free RP-SMA jack
Specification:
• Connector: 1 x RP-SMA plug
• Frequency range:
  2.400 - 2.500 GHz
  5.150 - 5.875 GHz
• Compatible to Bluetooth
• Antenna gain:
  6 dBi @ 2.400 - 2.500 GHz
  9 dBi @ 5.150 - 5.875 GHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• HBW horizontal beamwidth: 55°
• VBW vertical beamwidth: 24°
• VSWR: 2.5
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Antenna length including magnetic base: ca. 16.2 cm
• Features of the base:
  magnetic on the bottom
  rubberized bottom
  wall mountable
• Cable: coaxial
• Cable type: ULA 100
• Cable colour: black
• Cable attenuation: 1.4 dB @ 2.5 GHz per meter
• Cable diameter: ca. 2.79 mm
• Cable length: ca. 1 m
• Dimensions:
  antenna (LxWxH): ca. 162 x 66 x 18 mm
  base (LxWxH): ca. 80 x 77 x 15 mm
Package content:
• WLAN antenna
Data sheet:
http://www.delock.de/produkt/89590/pdf.html?sprache=en
