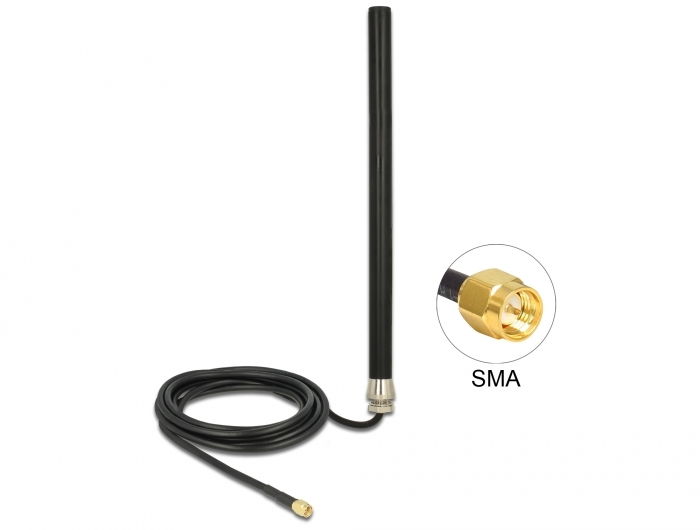

Delock LTE UMTS GSM Antenna SMA plug 3 dBi omnidirectional fixed with connection cable (RG-58, 3 m) wall mounting outdoor black

DELOCK

89529

New

This antenna by Delock allows the usage of different LTE, GSM and UMTS bands indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  690 - 960 MHz
  1710 - 2170 MHz
  2400 - 2700 MHz
• ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm

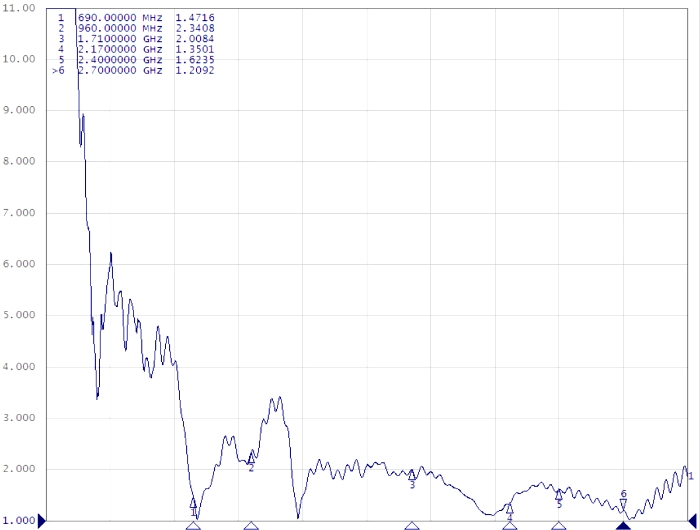

• VSWR: 2.0
• Polarisation: vertical
• Transmission power: max. 10 W
• Antenna type: rod antenna

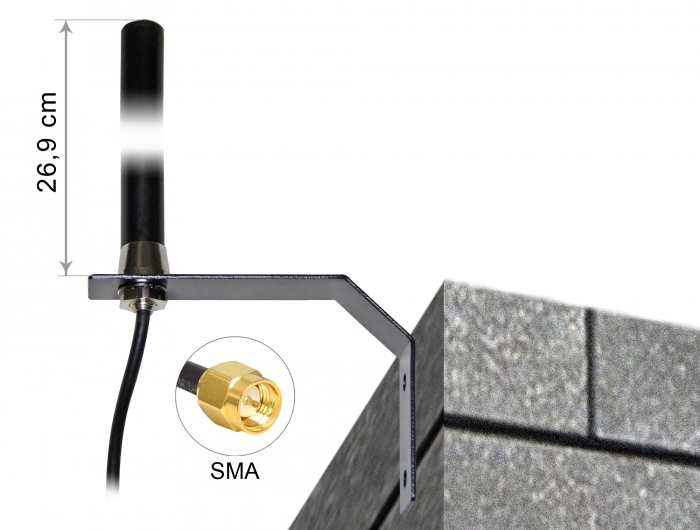

• Wall mounting brackets
• Operating temperature: -30 °C ~ 70 °C
• Housing material: plastic
• Base: metal
• Colour: black
• Cable: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable diameter: ca. 5 mm
• Cable attenuation: 0.57 dB @ 1 GHz per meter
• Cable length: ca. 3 m
Package content:
• LTE antenna
Data sheet:
http://www.delock.de/produkt/89529/pdf.html?sprache=en
