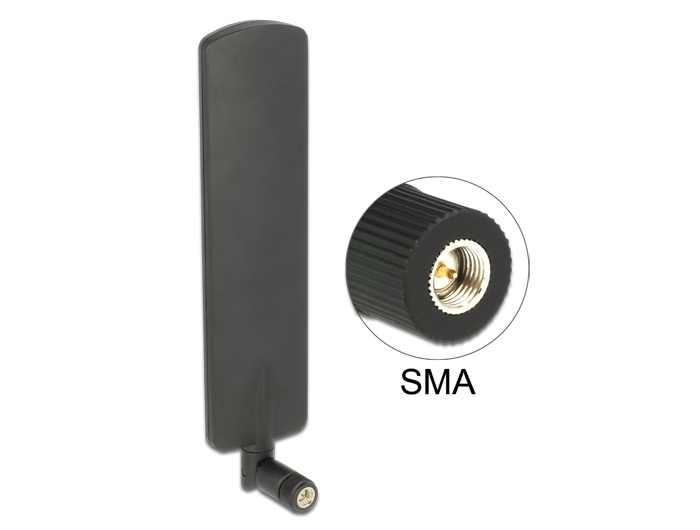

Delock LTE Antenna SMA plug 2 dBi omnidirectional with tilt joint black

DELOCK

89604

New

This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  698 - 960 MHz
  1710 - 2690 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz /
  915 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 4.5 (698 - 960 MHz) ; 3.5 (1710 - 2690 MHz)
• Polarisation: linear, vertical
• Operating temperature: -20 °C ~ 65 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 20.5 x 4.3 x 1.4 cm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/89604/pdf.html?sprache=en
