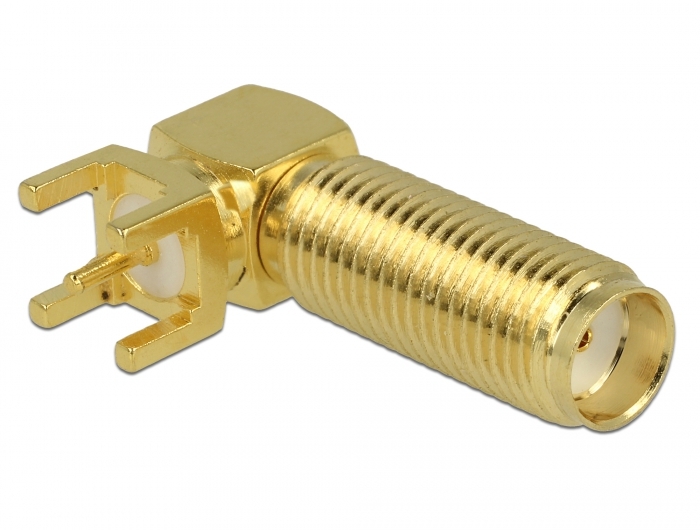

Delock SMA Jack 90° PCB Thread length 16 mm

DELOCK

65848

New

This jack by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
System requirements:
• Suitable board for mounting the SMA connector
Specification:
• Connector: 1 x SMA Jack 90°
• Pin: Brass gold plated
• Insulator: PTFE
• Housing: Brass gold plated
• Frequency range: 0 - 6 GHz
• Impedance: 50 Ohm
• VSWR: 1.5
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 16 mm
• Operating temperature: -55 °C ~ 165 °C
• Withstand Voltage: 500V / 50Hz
• Soldering: 5 solder joint
• Dimensions (LxHxD): 22.0 x 12.0 x 4.6 mm
Package content:
• SMA Jack
Data sheet:
http://www.delock.de/produkt/65848/pdf.html?sprache=en
