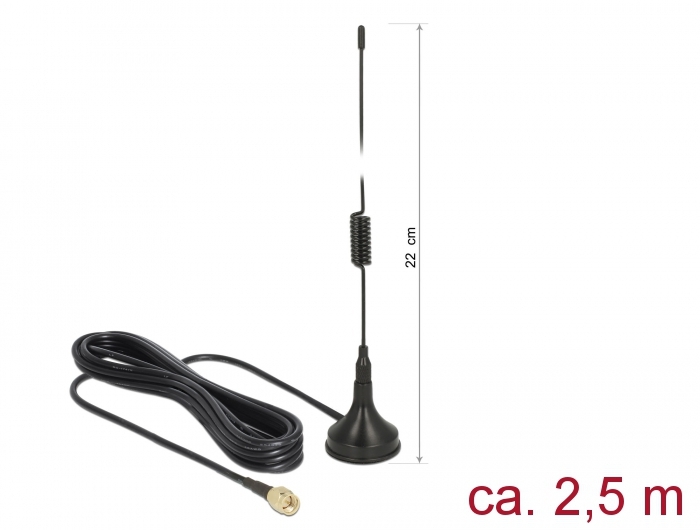

Delock LTE Antenna SMA plug 2 dBi fixed omnidirectional with connection cable RG-174 2.5 m outdoor black

DELOCK

89613

New

This antenna by Delock allows the usage of different LTE, GSM and UMTS bands indoors and outdoors. It is completely compatible to LTE, GSM, UMTS, ZigBee 902/928 MHZ, DECT, Z-Wave 908/921 MHZ, NB-IoT.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• LTE, GSM, UMTS, Z-Wave 908/921 MHz, ZigBee 902/928 MHz, DECT, NB-IoT
• Frequency range:
  900 - 1800 MHz
  1900 - 2100 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.9 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable length incl. connectors: ca. 2.5 m
• Antenna length including magnetic base: ca. 22.0 cm
• Diameter magnetic base: ca. 29.5 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/89613/pdf.html?sprache=en
