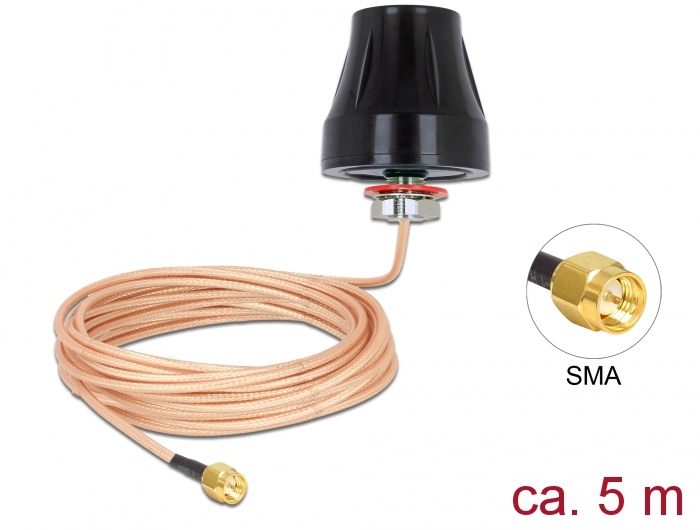

Delock LTE Antenna SMA plug 2 dBi fixed omnidirectional with connection cable (RG-316U 5 m) outdoor black

DELOCK

89899

New

This LTE antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  694 - 960 MHz
  1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915
  MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0 - 3.0
• Polarisation: linear, vertical
• Screw mounting with 12 mm bore hole
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-316U
• Cable colour: transparent
• Cable attenuation: 0.95 dB @ 1 GHz per meter
• Cable diameter: ca. 2.5 mm
• Cable length: ca. 5 m
• Dimensions (LxD): ca. 48 x 50 mm
Package content:
• Antenna
• Nut, washer
Data sheet:
http://www.delock.de/produkt/89899/pdf.html?sprache=en
