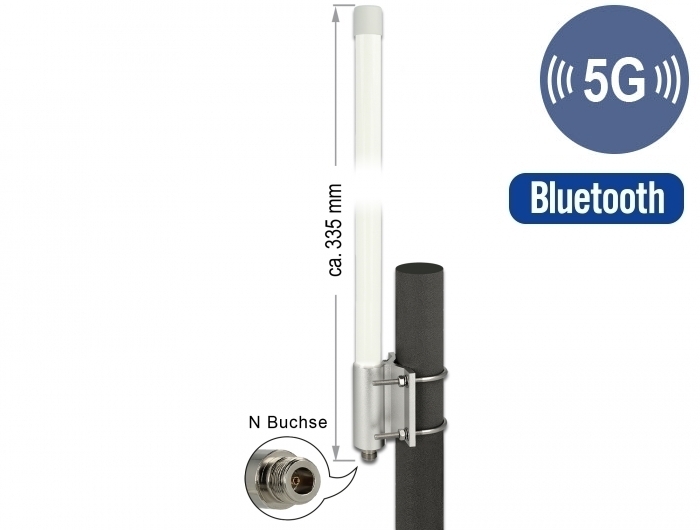

Delock 5G LTE Antenna N jack -2.14 - 2.93 dBi 33.5 cm fixed wall and pole mounting omnidirectional outdoor white

DELOCK

12631

New

This waterproof antenna by Delock allows the usage of different 5G and LTE bands outdoors. It is completely compatible to GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.

5G mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.
The 5G standard promises more throughput, capacity and low latency
System requirements:
• Device with one free N port
Specification:
• Connector: 1 x N jack waterproof
• Frequency range:
  617 - 798 MHz
  803 - 960 MHz
  1452 - 1496 MHz
  1710 - 2200 MHz
  2300 - 2690 MHz
  3300 - 3800 MHz
  4200 - 5000 MHz
• Antenna gain: -2.14 - 2.93 dBi
• Impedance: 50 Ohm
• VSWR: 3.0 - 5.0
• Polarisation: linear, vertical
• Operating temperature: -40 °C ~ 85 °C
• Housing material: GFRP
• Length: ca. 335 mm
• Diameter: ca. 27 mm
• Weight: ca. 284 g
Package content:
• Antenna

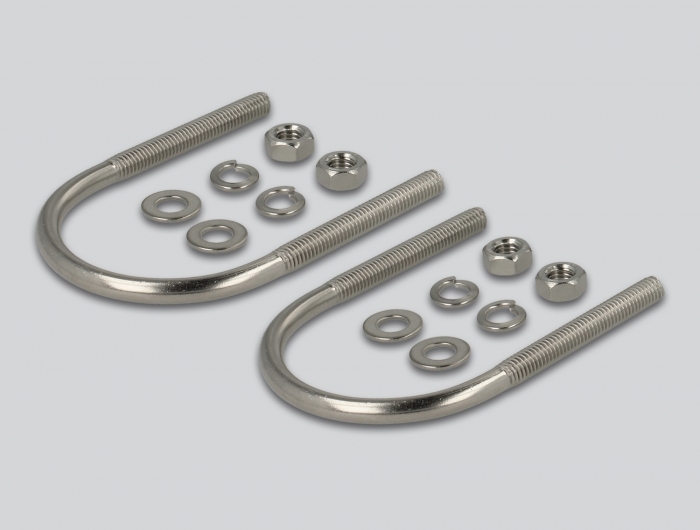

• Mounting material
Data sheet:
http://www.delock.de/produkt/12631/pdf.html?sprache=en
