> >>Delock Dualband WLAN ac/ax/a/b/g/n Antenna MHF® I plug 1.7 - 4.7 dBi PIFA FCP omnidirectional

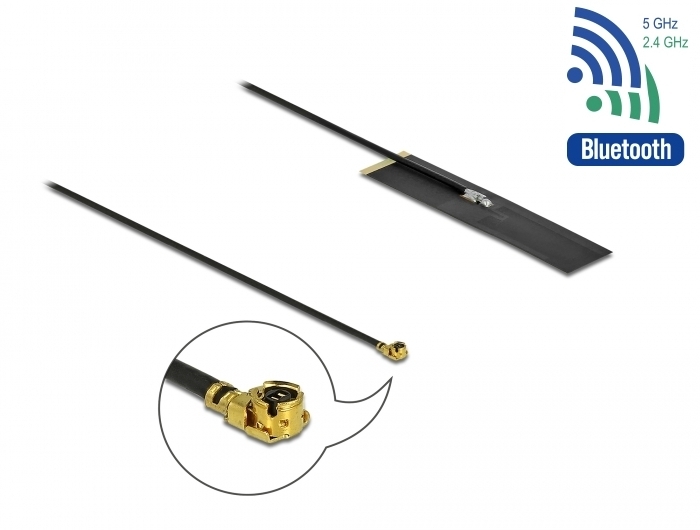

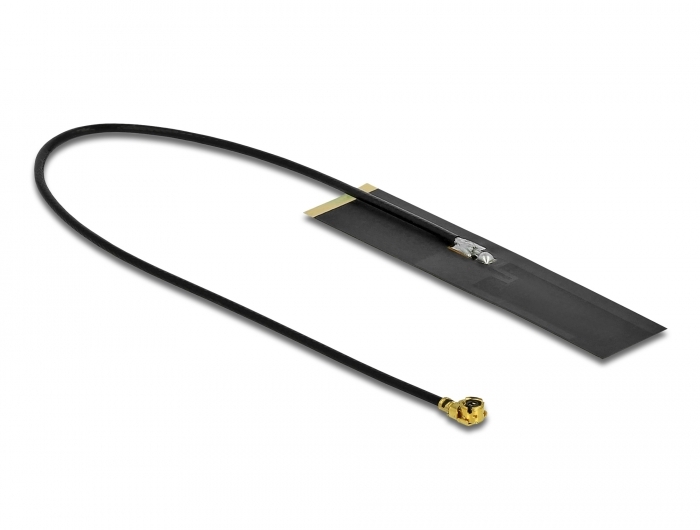

Delock Dualband WLAN ac/ax/a/b/g/n Antenna MHF® I plug 1.7 - 4.7 dBi PIFA FCP omnidirectional

Delock Dualband WLAN ac/ax/a/b/g/n Antenna MHF® I plug 1.7 - 4.7 dBi PIFA FCP omnidirectional

DELOCK

12628

New

This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.
System requirements:
• Device with one free MHF® I port

Specification:
• Connector: 1 x MHF® I plug
• Frequency range:
  2400 - 2500 MHz
  5150 - 5875 Mhz
• Antenna gain: 1.7 - 4.7 dBi
• VSWR: 2.5 - 3.0
• Impedance: 50 Ohm
• Mounting type: self-adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 480 x 10 x 0.1 mm
• Length incl. connectors (L): ca. 15 cm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12628/pdf.html?sprache=en
