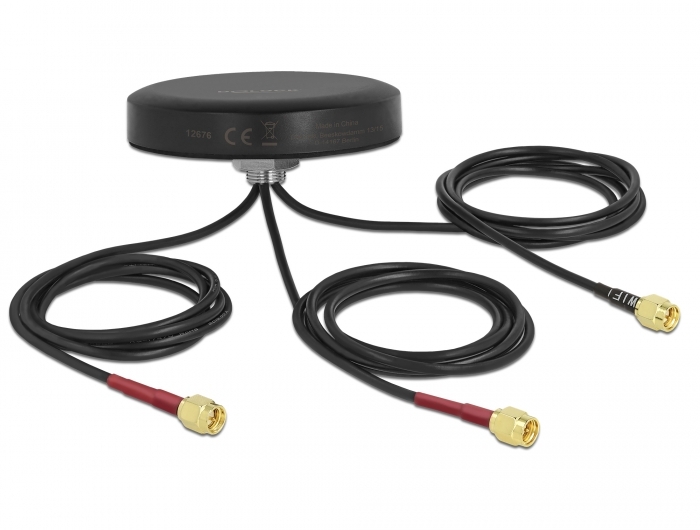

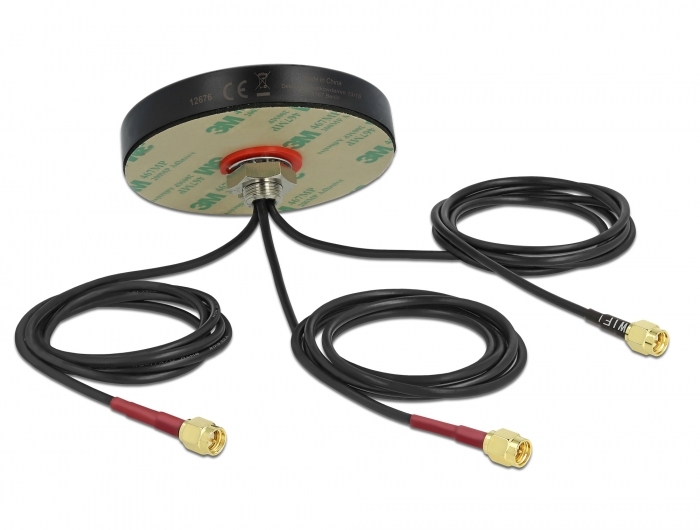

Delock LTE MIMO Dual Band WLAN 802.11 ac/ax/a/h/b/g/n Antenna 3 x SMA plug RG-174 1 m screw mounting outdoor black

DELOCK

12676

New

This antenna by Delock allows the usage of different LTE and WLAN bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, Dual Band WLAN, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz.
System requirements:
• Device with multiple free SMA ports
Specification:
• Connectors: 3 x SMA plug
• 2 x LTE:
  Frequency range:
  698 MHz - 960 MHz
  1710 MHz - 2690 MHz
  Impedance: 50 Ohm
  VSWR: 3.0
  Antenna gain: 2.0 - 2.5 dBi
  Polarisation: linear
• WLAN:
  Frequency range:
  2400 MHz - 2483 MHz
  4900 MHz - 5825 MHz
  Impedance: 50 Ohm
  VSWR: 2.0
  Antenna gain: 3 dBi
  Polarisation: linear
• Mounting type: screw mounting
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Protection class: IP67
• Colour: black
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable length incl. connector: ca. 1 m
• Dimensions (Ø x H): ca. 81.3 x 16.3 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12676/pdf.html?sprache=en
