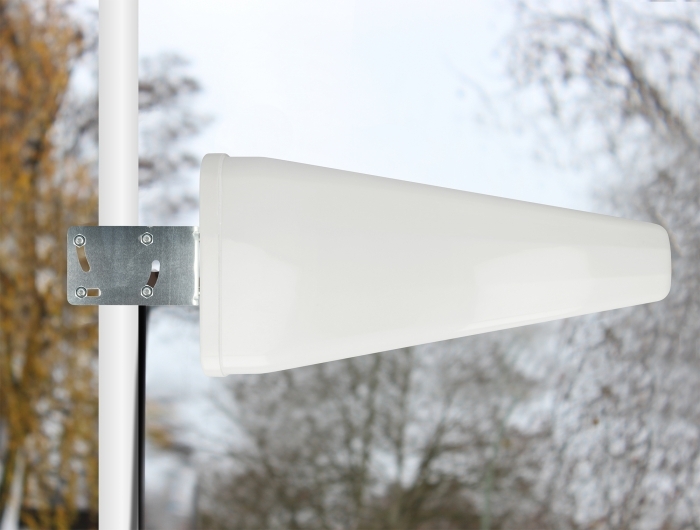

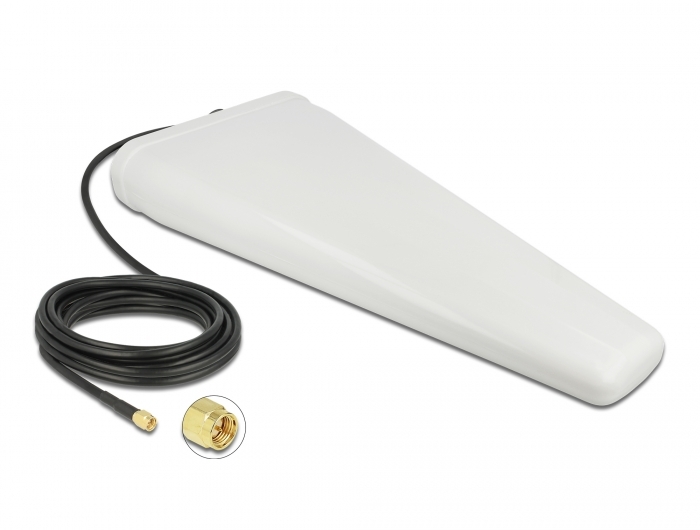

Delock LTE Antenna SMA plug 9 - 11 dB directional with connection cable (RG-58, 5 m) white outdoor

DELOCK

12002

New

This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• LTE band: 1 - 4; 7; 9; 10; 15; 16; 20; 23; 25; 27; 30; 33 - 41
• Frequency range: 698 - 960 MHz, 1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 9 - 11 dBi
• Polarisation: vertical
• Horizontal beam angle: 70°
• Vertical beam angle: 55°
• Impedance: 50 Ohm
• VSWR: 1.5
• Operating temperature: -40 °C ~ 60 °C
• Housing material: ABS UV resistant
• Colour: white
• Dimensions (LxWxH): ca. 450 x 210 x 65 mm
• Cable type: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable attenuation: 0.5 dB @ 800 MHz per meter
• Cable diameter: ca. 5 mm
• Cable length incl. connectors: ca. 5 m
Package content:
• LTE antenna

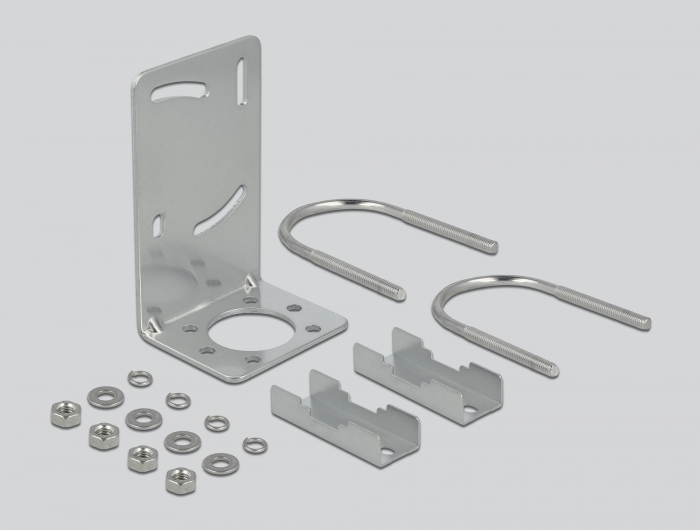

• Pole mounting kit
Data sheet:
http://www.delock.de/produkt/12002/pdf.html?sprache=en
