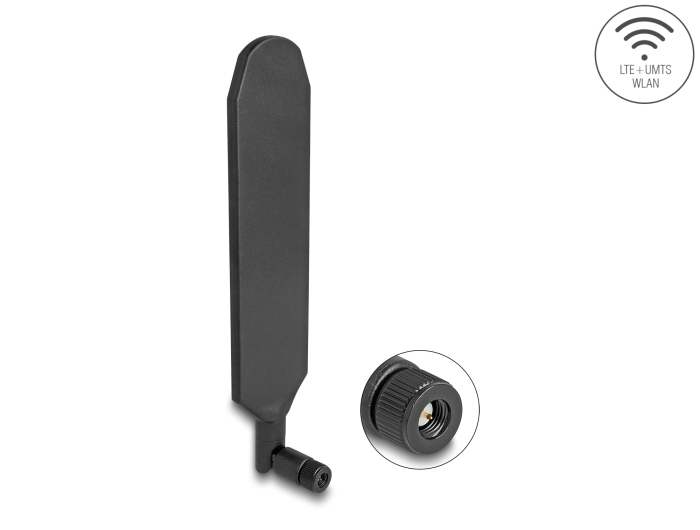

Delock LTE GNSS Antenna SMA plug 1.5 - 3.0 dBi omnidirectional rotatable with tilt joint black

DELOCK

90103

New

This LTE GNSS antenna by Delock allows the usage of different LTE bands as well as worldwide reception of GNSS signals indoors. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa.

5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
System requirements:
• Device with a free SMA connector
Specification:
• Connector: 1 x SMA plug
• LTE, GNSS, Bluetooth, GSM, UMTS, WLAN 2.4, ZigBee, Z-Wave, DECT, LoRa
• Frequency range:
  700 - 960 MHz
  1575.42 MHZ
  1710 - 2700 MHz
• Antenna gain:
  700 - 960 MHz: 1.5 dBi
  1575.42 MHz 1.8 dBi
  2100 - 2700 MHz: 3.0 dBi
• Impedance: 50 Ohm
• VSWR:
  700 - 960 MHz: 3.0
  1575 - 2700 MHz: 2.0
• Operating temperature: -40 °C ~ 80 °C
• Housing material: ABS
• Dimensions (LxWxH): ca. 209 x 42 x 6 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/90103/pdf.html?sprache=en
