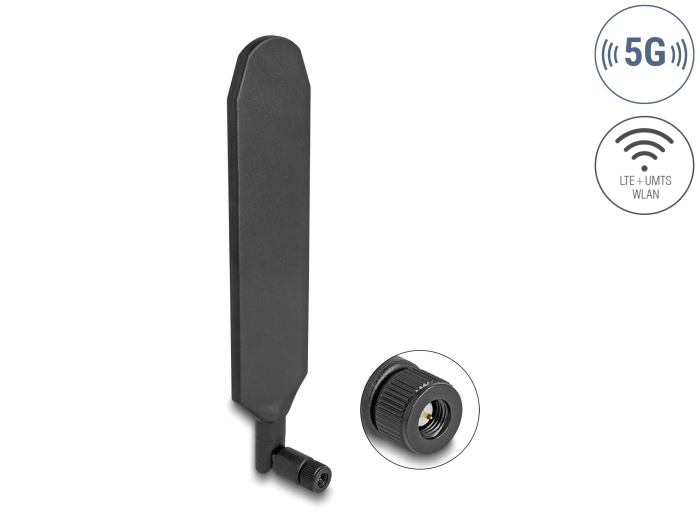

Delock 5G LTE Antenna SMA plug 3 dBi omnidirectional rotatable with tilt joint black

DELOCK

90102

New

This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa.

5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
System requirements:
• Device with a free SMA connector
Specification:
• Connector: 1 x SMA plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, LoRa
• Frequency range:
  700 - 960 MHz
  1710 - 2700 MHz
  2300 - 2500 MHz
  3300 - 4000 MHz
• Antenna gain: 0.5 - 3.0 dBi
• Impedance: 50 Ohm
• VSWR: 2.8:1 max.
• Polarisation: linear, vertical
• Operating temperature: -40 °C ~ 80 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 209 x 42 x 6 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/90102/pdf.html?sprache=en
