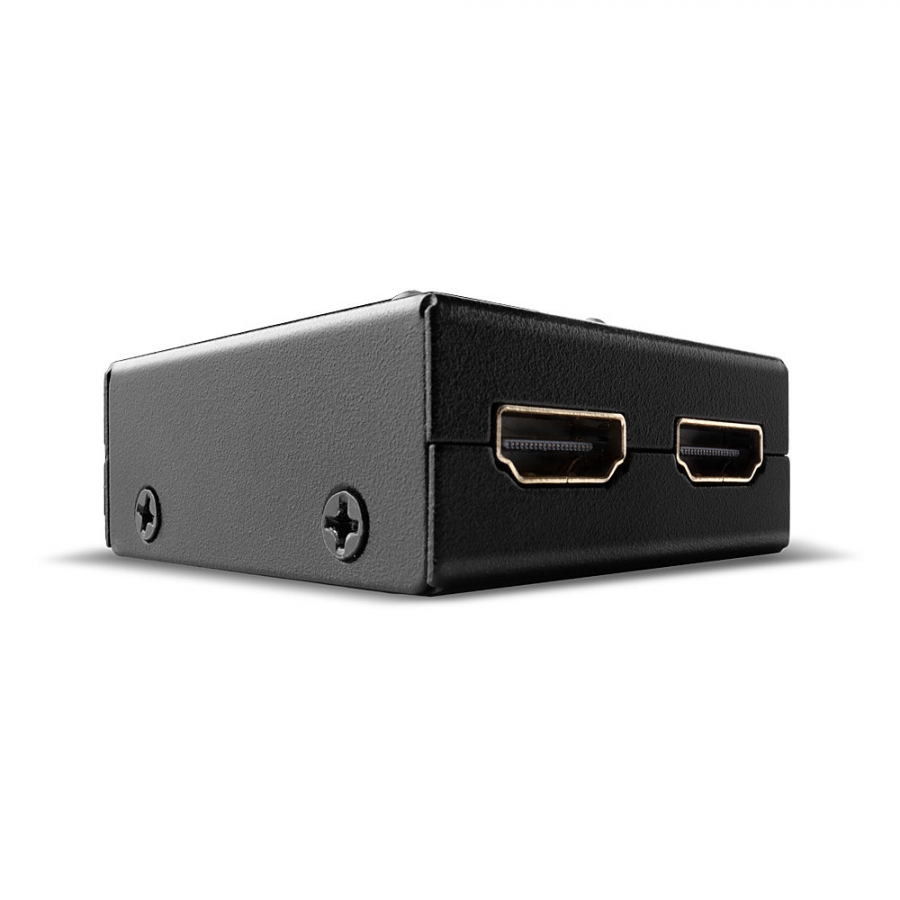

2 Port HDMI 18G Bi-Directional Switch

LIN38336

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supports Bandwidth: 18Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: Pass-through
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • IR Support: -
  • CEC Support: Pass-through
  • Serial Interface: -
  • Special Features: Bi-Directional Capability



Connectors

  • Input: 2 x HDMI Type A (Female) Bi-Directional
  • Output: HDMI Type A (Female) Bi-Directional
  • Control: -
  • Power: Powered via HDMI interface



Physical Properties

  • Dimensions (approx.) WxDxH: 49x52x20mm (1.93x2.05x0.79in)
  • Housing Material: Metal
  • Net Weight: 0.7kg (1.54lb)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)
  • Humidity: 10% to 85% RH (no condensation)
  • Power Requirements: -
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 63.5x80x28mm (2.5x3.15x1.1in)
  • Gross Weight: 0.84kg (1.85lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package content

  • 2 Port HDMI 18G Bi-Directional Switch
  • Lindy Manual



Purchasing Information

  • No.: 38336
  • EAN: 4002888383363
