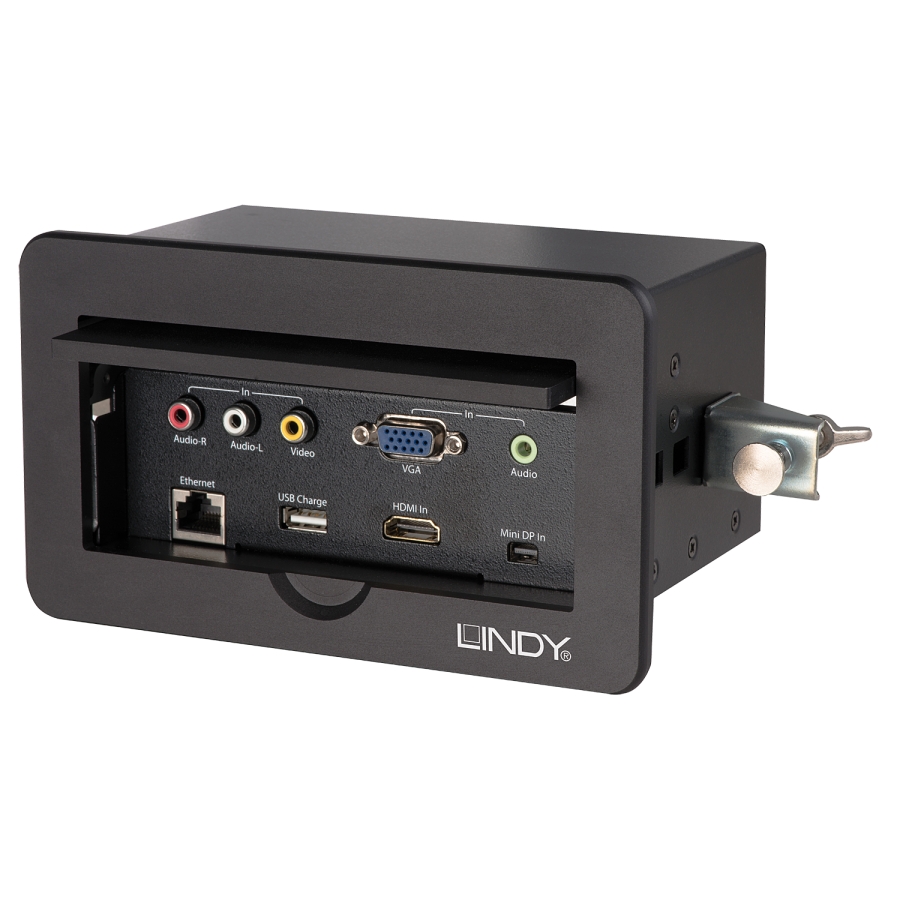

Lindy 4 Port Multi AV to HDMI Conference Table Switch

Lindy

LIN38271

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 1.3
  • Supports Bandwidth: 4.95 Gbps
  • Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
  • HDCP Support: 1.1
  • Supported Audio: Audio Pass-through, L/R Audio via Composite
  • Separate Audio Ports: Stereo (3.5mm),  Composite Video & L/R audio (3 x RCA)
  • IR Support: -
  • CEC Support: Pass-Through
  • Serial Interface: -
  • Special Features: EDID Bypass



Connectors

  • Input: HDMI (Female), Mini-DP (Female), VGA (Female), 3.5mm (Female),  3 x RCA (Female)
  • Output: HDMI (Female), USB Type A (Female) Power Only
  • Control: RJ45
  • Power: 5.5/2.5mm DC socket



Physical Properties

  • Dimensions WxDxH: 170x100x100mm (6.69x3.94x3.94in)
  • Housing Material: Metal
  • Net Weight: 1.4kg (3.09lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 10 – 85% RH (non-condensing)
  • Power Requirements: 12VDC 2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 32x21x11mm (1.26x0.83x0.43in)
  • Gross Weight: 1.77kg (3.9lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Multi AV Input to HDMI Conference Table Switch
  • Desk Mount Hooks x 2
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38271
  • EAN: 4002888382717
