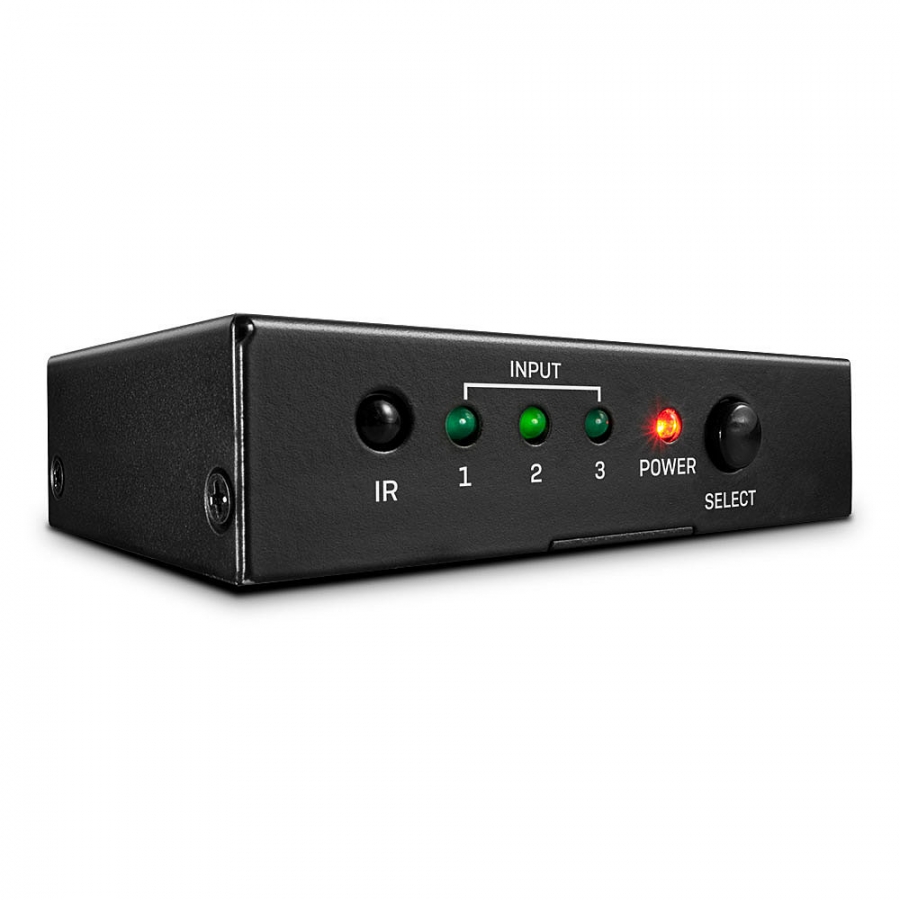

3 Port HDMI 18G Switch

LIN38232

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supports Bandwidth: 18Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: HDCP 2.2
  • Supported Audio: Audio Pass-through
  • Separate Audio Ports: -
  • IR Support: 38kHz
  • CEC Support: -
  • Serial Interface: -
  • Special Features: HDR10 & Dolby Vision Support



Connectors

  • Input: 3 x HDMI Type A (Female)
  • Output: HDMI Type A (Female)
  • Control: -
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 80x20x51mm (3.15x0.79x2.01in)
  • Housing Material: Metal
  • Net Weight: 0.108kg (0.24lb)
  • Operating Temperature: 0°C - 45°C (32°F - 113°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)
  • Humidity: 10 - 85% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 170x60x120mm (6.69x2.36x4.72in)
  • Gross Weight: 0.405kg (0.89lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package content

  • 3 Port HDMI Switch
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Remote Control and CR2025L Battery
  • Lindy Manual



Purchasing Information

  • No.: 38232
  • EAN: 4002888382328
