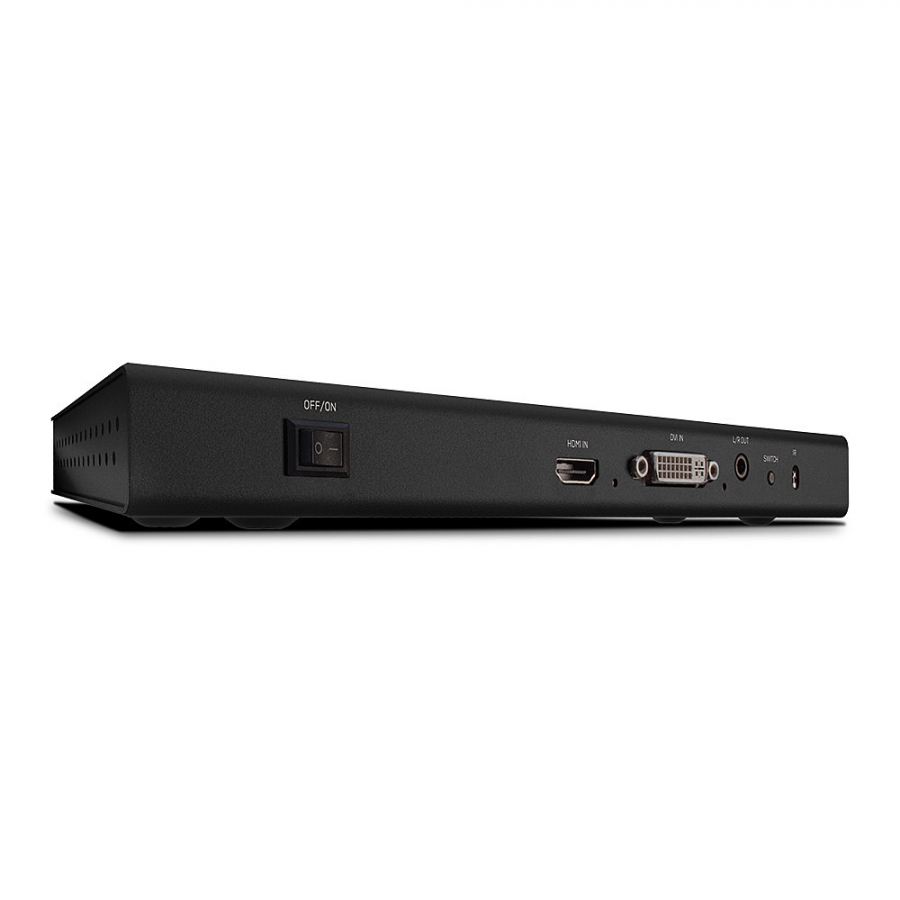

4 Port HDMI 1.4 10.2G Video Wall Scaler

LIN38172

New

Specification

  • AV Interface: HDMI
  • Interface Standard: HDMI 1.4
  • Supported Bandwidth: 10.2Gbps
  • Maximum Input Resolution: 4096x2160@30Hz 4:4:4 8bit
  • Maximum Output Resolution: 1920x1080@60Hz 4:4:4 8bit
  • HDCP Support: 1.4
  • Supported Audio: Audio Pass Through
  • Separate Audio Ports: 3.5mm Stereo
  • Special Features: -



Connectors

  • Input: 1 x HDMI (Female), 1 x DVI-D (Female)
  • Output: 4 x HDMI (Female)
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions (approx.) WxDxH: 190x90x23mm (7.48x3.54x0.91in)
  • Housing Material: Metal
  • Net Weight: 0.85kg (1.87lb)
  • Operating Temperature: -5°C - 55°C (23°F - 131°F)
  • Storage Temperature: -10°C - 70°C (14°F - 158°F)
  • Humidity: 5-90% RH (non-condensing)
  • Power Requirements: 12VDC 2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 282x58x185mm (11.1x2.28x7.28in)
  • Gross Weight: 1.316kg (2.9lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, REACH, California 65 & RoHS



Package Contents

  • 4 Port HDMI 1.4 10.2G Video Wall Scaler
  • Multi-Country Power Supply  (US, UK, EU & AUS)
  • Remote Control
  • Lindy Manual



Purchasing Information

  • No.: 38172
  • EAN: 4002888381727
