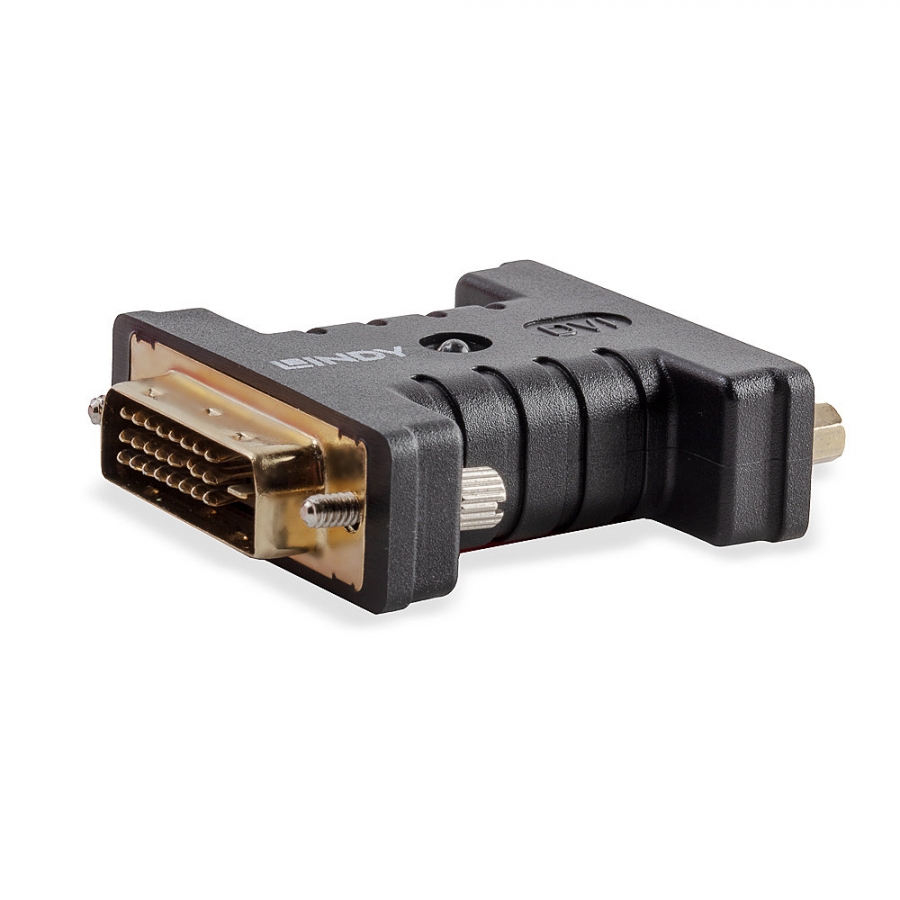

Lindy DVI EDID Emulator with Cloning

Lindy

LIN32117

New

Specifications:

  • AV Interface: DVI
  • Interface Standard: 1
  • Supported Bandwidth: 3.96Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Video EDID:

720x400@70Hz

640x480@60/67/72/75Hz

800x600@56/60/72/75Hz

832x624@75Hz

1024x768@60/70/75Hz

1152x864@75Hz

1152x870@75Hz

1440x900@60Hz

1280x960@60Hz

1280x1024@60/75Hz

1680x1050@60Hz

1920x1080@60Hz

1600x1200@60Hz

1920x1200@60Hz

  • Audio EDID: -
  • HDCP Support: -
  • Special Features: EDID Cloning



Connectors:

  • Input: DVI
  • Output: DVI
  • Power: -



Physical Properties:

  • Dimensions (approx.) WxDxH: 55x43x15mm (2.17x1.69x0.59in)
  • Housing Material: PVC
  • Net Weight: 0.035kg (0.08lb)
  • Operating Temperature: 0°C - 85°C (32°F - 185°F)
  • Storage Temperature: -40°C - 85°C (-40°F - 185°F)
  • Humidity: 5-95%
  • Power Requirements: -
  • Colour: Black



Miscellaneous:

  • Packaging Type: Polybag
  • Packaging Dimensions: 133x144mm (5.24x5.67in)
  • Gross Weight: 0.0354kg (0.08lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Content:

  • DVI EDID Emulator
  • Lindy Manual



Purchasing Information:

  • No.: 32117
  • EAN: 4002888321173
