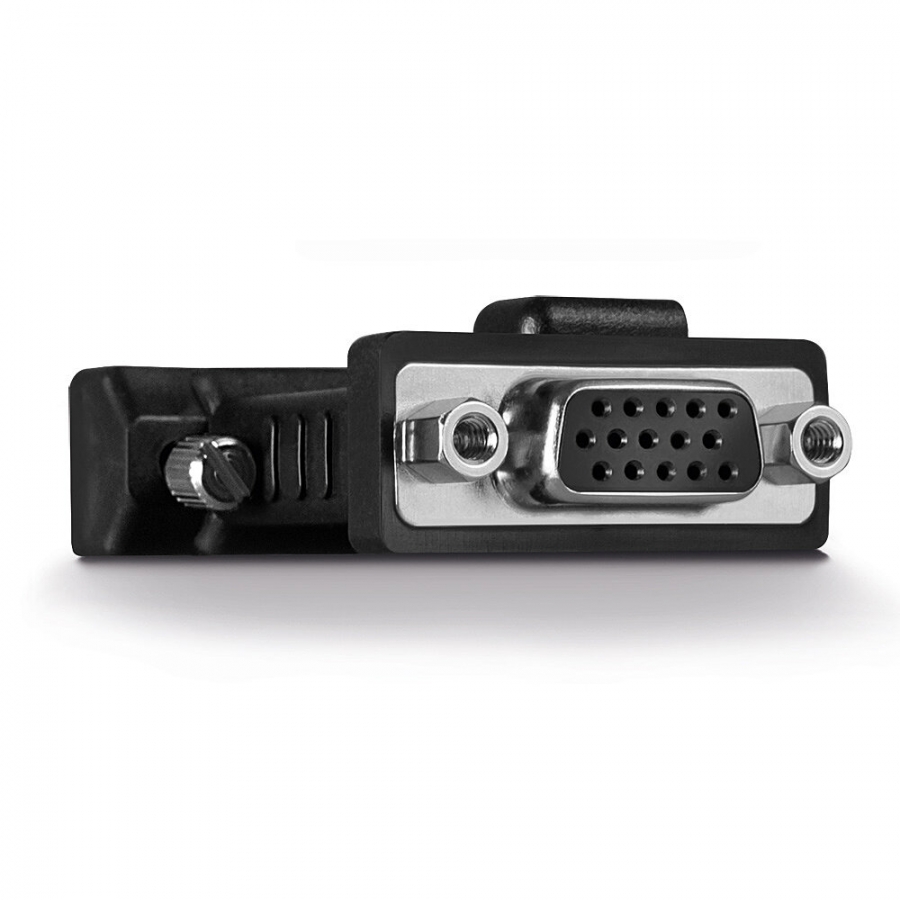

Lindy VGA EDID Emulator

Lindy

LIN32121

New

Specification

  • AV Interface: VGA
  • Interface Standard: VGA
  • Supported Bandwidth: 4.95Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Video EDID:
    • 1024x768@75Hz
    • 1152x864@75Hz
    • 1280x720@60Hz
    • 1280x768@60Hz
    • 1280x960@60Hz
    • 1280x1024@60Hz/75Hz
    • 1366x768@60Hz
    • 1440x900@60Hz
    • 1600x900@60Hz
    • 1600x1200@60Hz
    • 1680x1050@60Hz
    • 1920x1080@60Hz
    • 1920x1200@60Hz
  • Audio EDID: -
  • HDCP Support: -
  • Special Features: -



Connectors

  • Input: VGA (Female)
  • Output: VGA (Male)
  • Power: Powered by source device, 3.5/1.35mm (Optional)



Physical Properties

  • Dimensions (approx.) WxDxH: 33x59x14mm (1.3x2.32x0.55in)
  • Housing Material: Metal
  • Net Weight: 0.027kg (0.06lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 80°C (-4°F - 176°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 500mA (Optional)
  • Colour: Black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 133x144mm (5.24x5.67in)
  • Gross Weight: 0.042kg (0.09lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • VGA EDID Emulator
  • Lindy Manual



Purchasing Information

  • No.: 32121
  • EAN: 4002888321211
