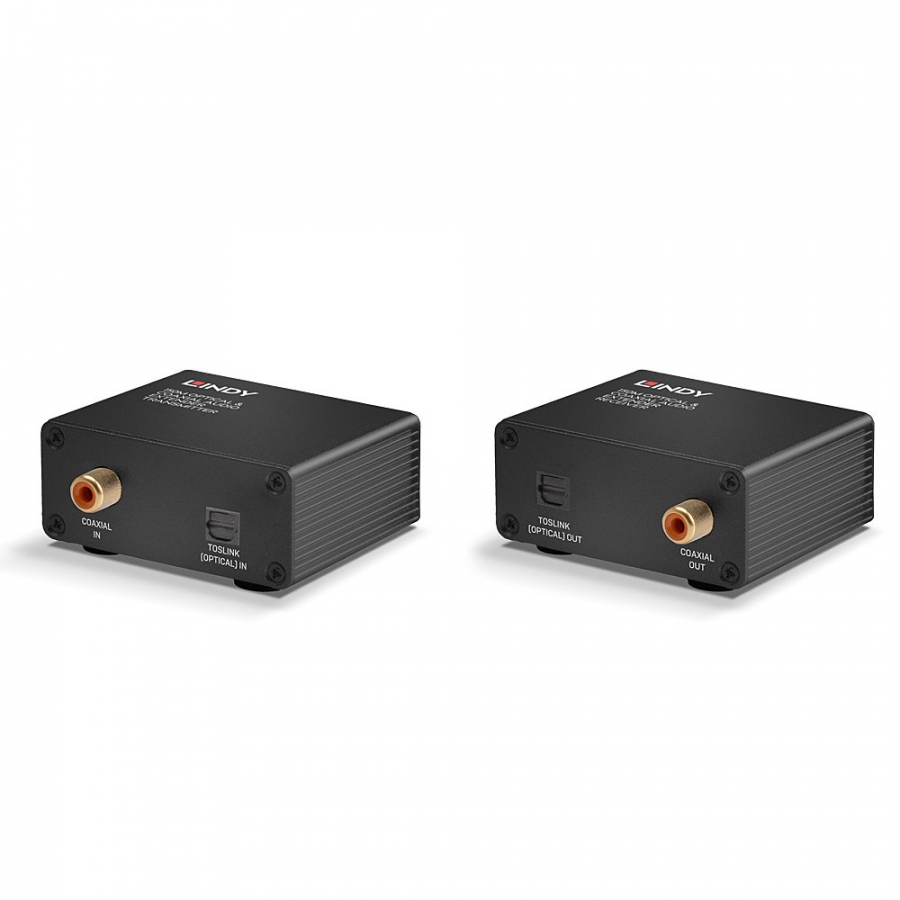

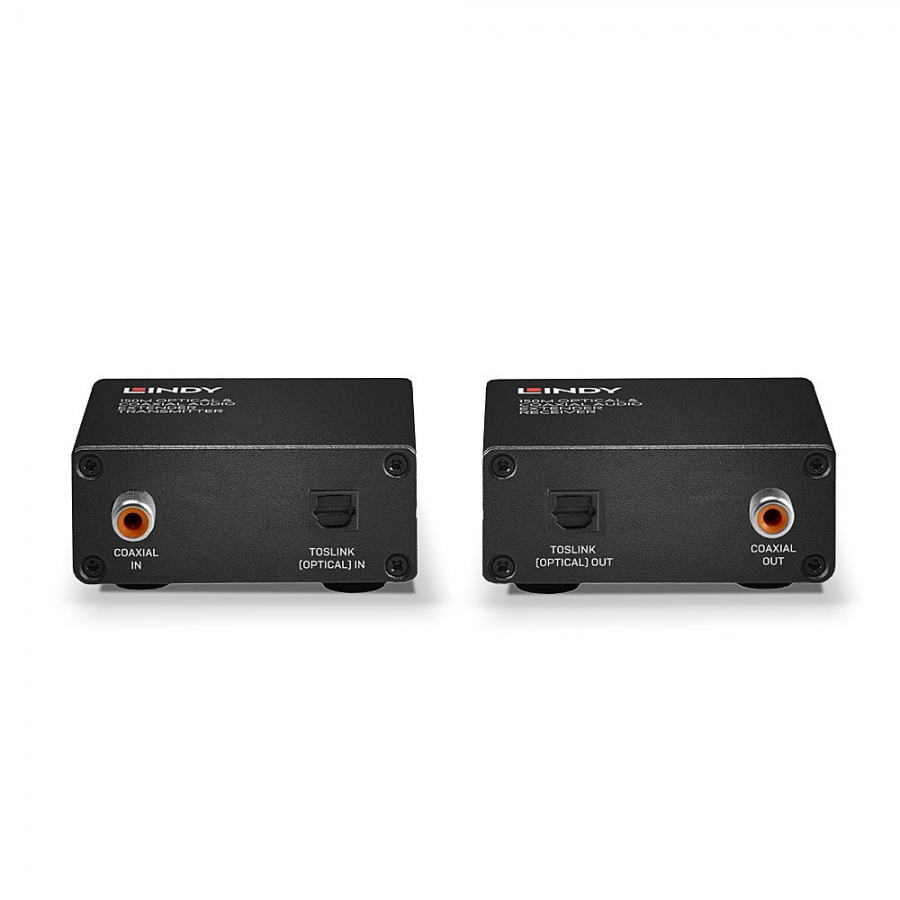

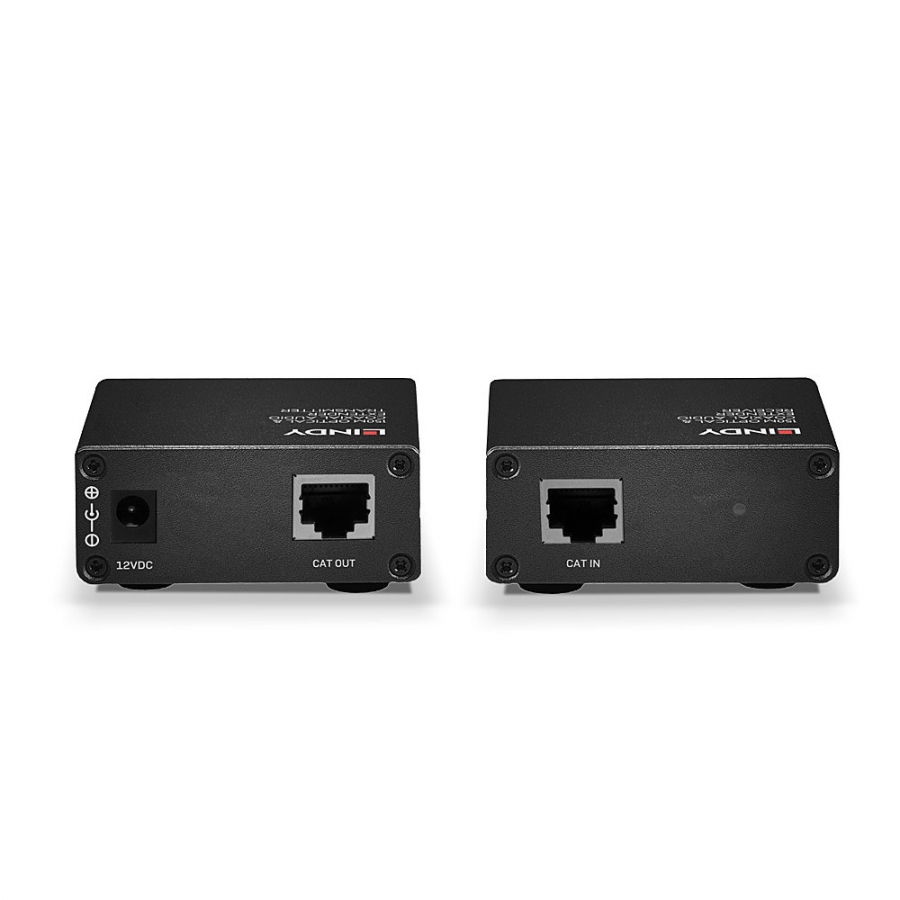

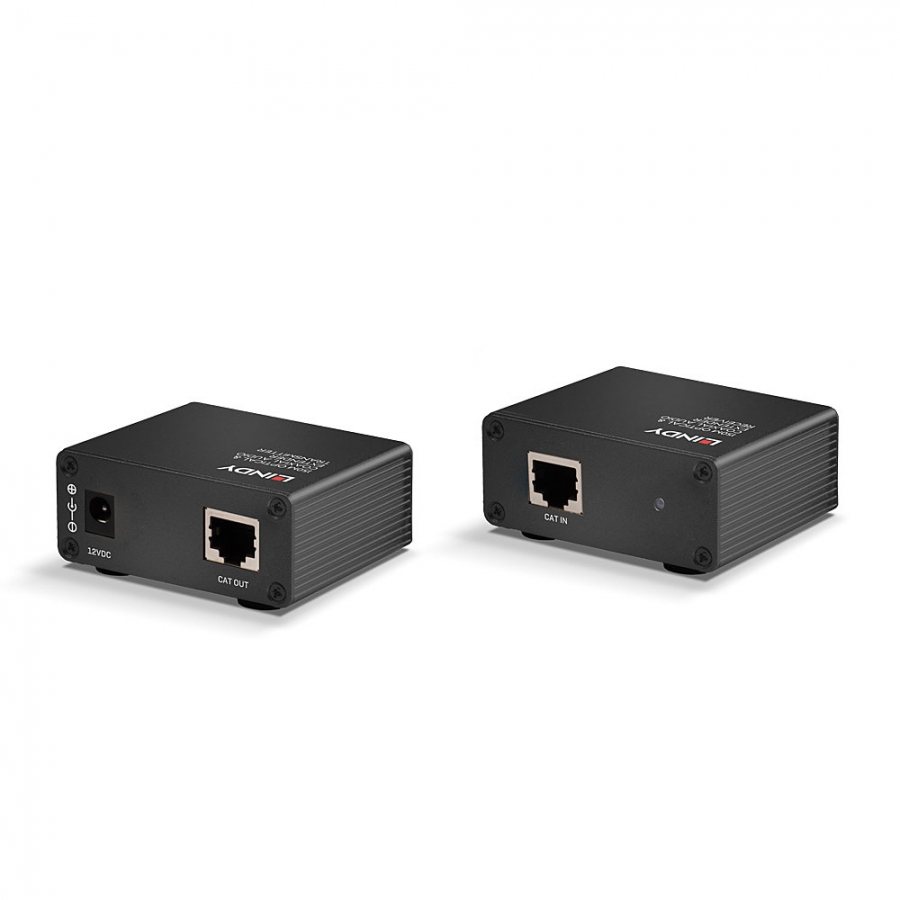

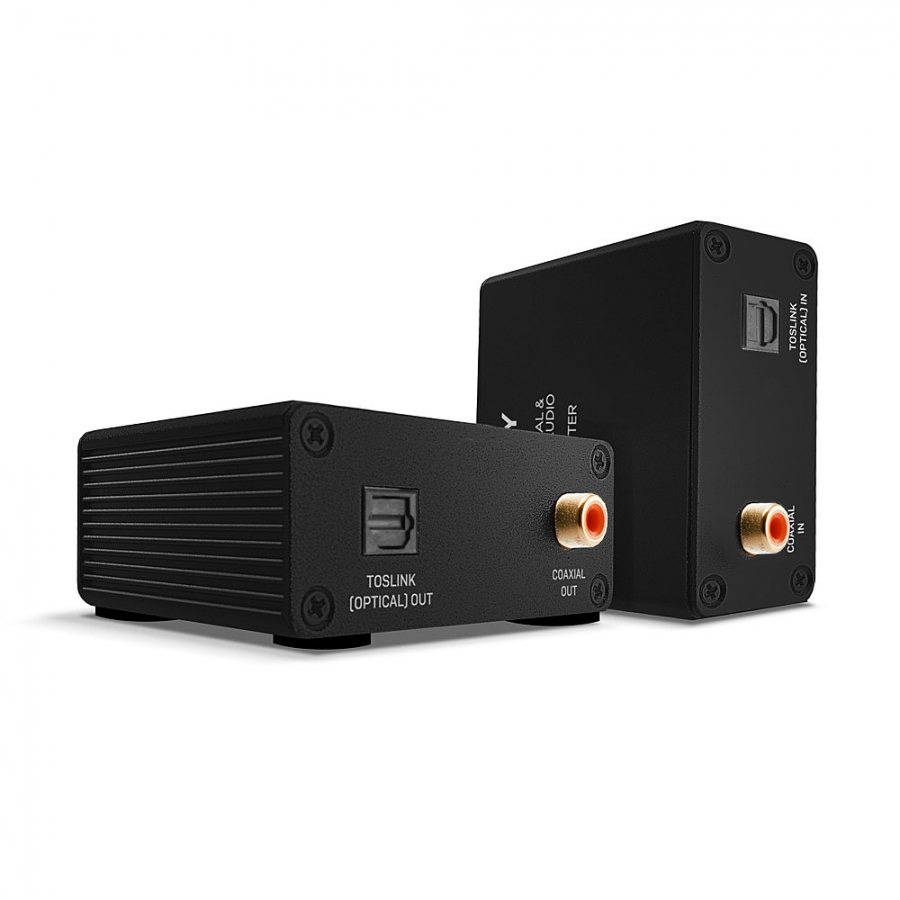

LINDY 150m Toslink & Coaxial Digital Audio Extender

Lindy

70456

New

Extends TosLink (Optical) & coaxial digital audio up to 150m over network cable Supports stereo and multi-channel audio formats including Dolby Digital & DTS Supports PoC (Power over Cat Cable) from the transmitter to receiver Simultaneous audio output 2 year warrantyThe Lindy 150m Cat.6 TosLink (Optical) & Coaxial Digital Audio Extender is a high-quality solution for extending digital audio signals over long distances, using standard network cable. With TosLink (Optical) and coaxial inputs and outputs, this extender can be easily used with a variety of AV source devices including TVs and amplifiers, with speakers or soundbars located at the receiver side. Connected audio can be output simultaneously to provide splitting functionality from a single input, great for smaller audio broadcasting setups in underground railway stations, bus depots or medical facilities. This also allows simple conversion of TosLink and Coaxial signals into their opposing output.Supporting both stereo and multi-channel audio extension, this extender will allow for impressive three-dimensional surround sound performance to compliment films and games when connected to the audio source device, as well as crystal clear speech from user generated audio. This provides the user with an excellent point to point solution, ideal for use in immersive residential cinema rooms or creating a more attractive and enticing retail experience.PoC (Power over Cable) functionality, the supply of power and data signals over Cat.6 cable on a point to point connection between the transmitter and receiver also brings additional flexibility as only one power supply is required at the transmitter unit, ideal when power outlets are limited at the receiver end of the installation.Please note: simultaneous output is only possible when identical 96KHz sample rates are used

TypeAV transmitter & receiver
Cable types supportedCat5e, Cat6
Maximum transfer distance150 m
ChipsetEL5171/ EL5172
Audio formats supportedDTS, LPCM
MaterialMetal
Product colourBlack
CertificationCE, FCC, RoHS, REACH & California Proposition 65
Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
Digital audio coaxial in1
Digital audio coaxial out1
Digital audio optical in1
Digital audio optical input typeTOSLINK
Digital audio optical out1
DC-in jackY
Operating voltage (transmitter)12 V
Current1.25 A
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)5 - 90%
Receiver dimensions (WxDxH)65.9 x 26.9 x 53.1 mm
Receiver weight168 g
Transmitter dimensions (WxDxH)65.9 x 26.9 x 53.1 mm
Transmitter weight168 g
Package width190 mm
Package depth60 mm
Package height145 mm
Package weight405 g
Package typeBox
AC adapter includedY
Included power plug typesEU, UK, US
ManualY
Sustainability certificatesRoHS
