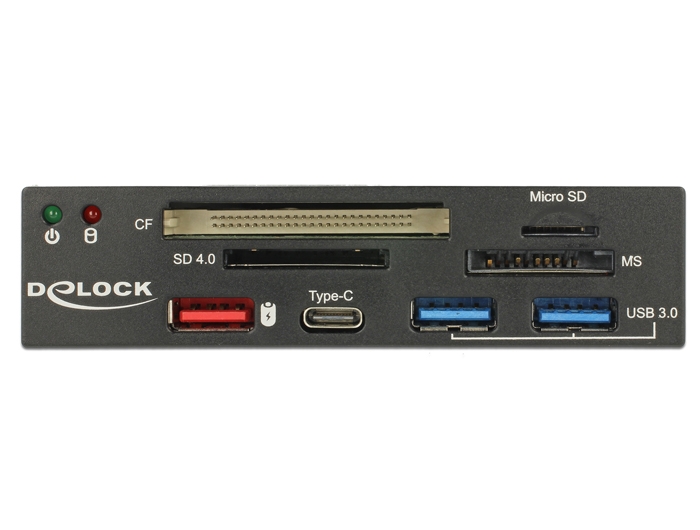

Delock 3.5″ USB 3.0 Card Reader 4 slot + 1 x USB-C™ female + 3 x USB 3.0-A female

DELOCK

91657

New

This card reader by Delock can be installed into a 3.5″ bay of a PC and will be connected to an internal USB 3.0 pin header male port. It has a four slot card reader and enables the connection of up to four USB devices. The hub has one USB Type-A port, which provides the quick charging function, as well as one USB Type-C™ port.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.x.x
• PC with one free 3.5″ bay
• Mainboard with a free 19 pin USB 3.0 pin header male
• Power supply with a free 4 pin power connector
Specification:
• Connectors:
  external:
    4 x Card Reader slots
    1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ female
    1 x USB Type-A female charging port
    2 x SuperSpeed USB (USB 3.1 Gen 1) Type-A female
  internal:
    1 x 19 pin USB 3.0 pin header female
    1 x Molex 4 pin male
• Chipset: GL3522 (Hub), RTS5321 (Card Reader)
• Metal housing for installation into a 3.5″ bay
• Data transfer rate up to 5 Gbps
• Maximum output current:
  USB Type-C™ / USB Type-A female 5 V / 1.5 A
  USB Type-A female charging port 5 V / 2.4 A
• LED indicator for the card reader for power (green) and access (red)
• Cable data:
  1 x 19 pin USB 3.0 pin header female cable ca. 53 cm (incl. connector)
  1 x 4 pin power cable ca. 28 cm (incl. connector)
• Hot Swap, Plug & Play

• Supports following memory cards:
  Slot 1 Compact Flash
  CF I, CF II, Micro Drive

  Slot 2 Micro SD
  MicroSD, Micro SDHC, Micro SD UHS-I, Micro SD UHS-II, T-Flash, MMCmicro

  Slot 3 Secure Digital / Multi Media Card
  SD, SD High Capacity (SDHC), SD UHS-I, SD UHS-II, SDXC, miniSD*, MMC, MMC plus,
  MMCmobile*, RS-MMC

  Slot 4 Memory Stick
  MS, MS PRO, MS PRO-HG, Memory Stick XC, MS Duo, MS PRO MagicGate,
  MS PRO Duo, MS PRO-HG Duo, MS PRO-HG Duo, MS XC-HG Duo, MS XC Duo,
  MS Micro*, MS PRO-HG Micro*, MS HG Micro*, MS XC-HG Micro*, MS XC Micro*, M2*

  *Adapter is required
Package content:

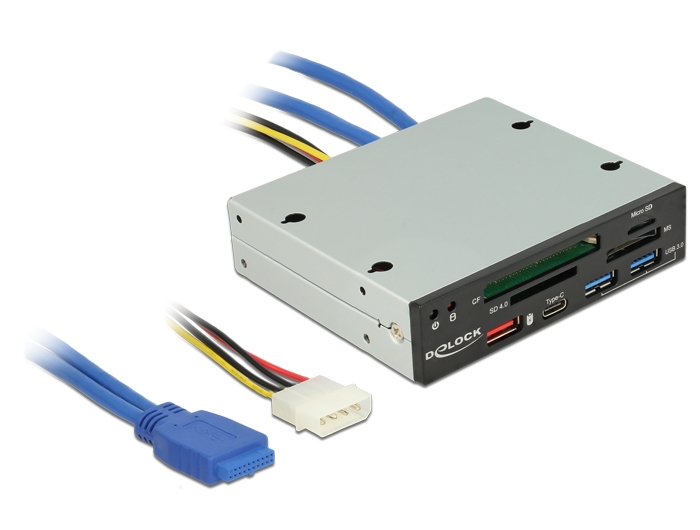

• 3.5″ card reader with connection cable

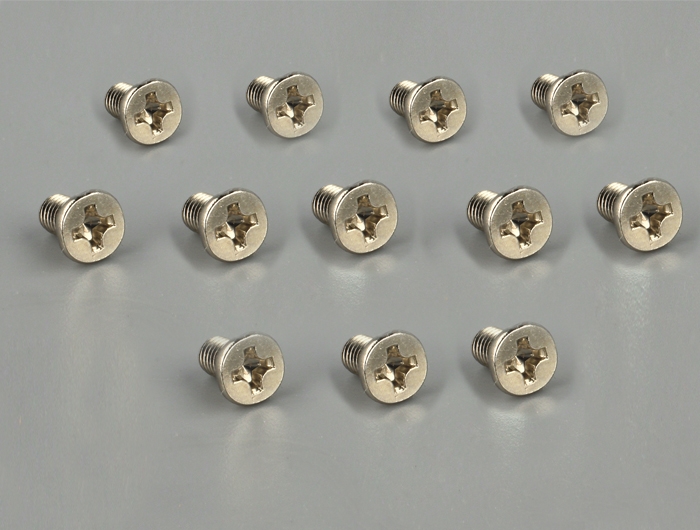

• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/91657/pdf.html?sprache=en
