Delock 3.5″ USB 2.0 Card Reader 5 slot + 1 x USB 2.0 Type-A female

DELOCK

91708

New

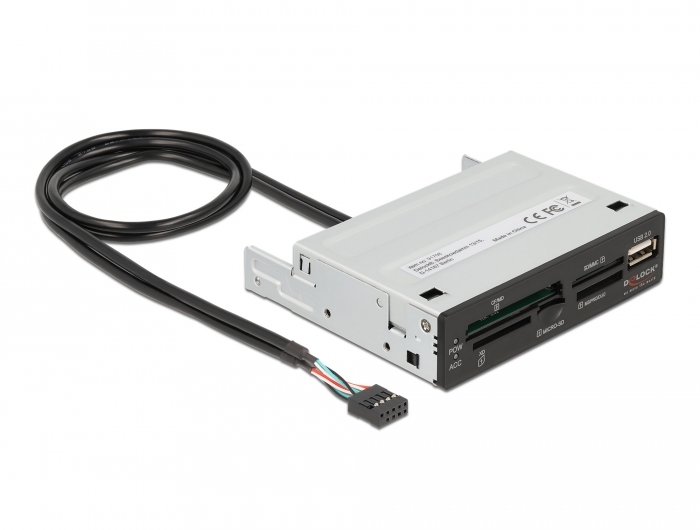

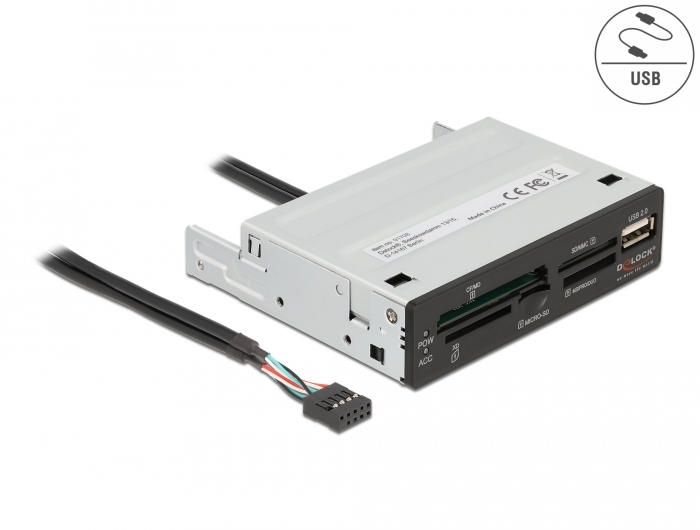

This card reader by Delock can be installed into a 3.5″ bay of a PC and will be connected to an internal USB 2.0 pin header male port. It has a five slot card reader and enables the connection of one USB device.
System requirements:
• Linux Kernel 5.11 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free 3.5″ bay
• Motherboard with a free 9 pin USB 2.0 pin header male
Specification:

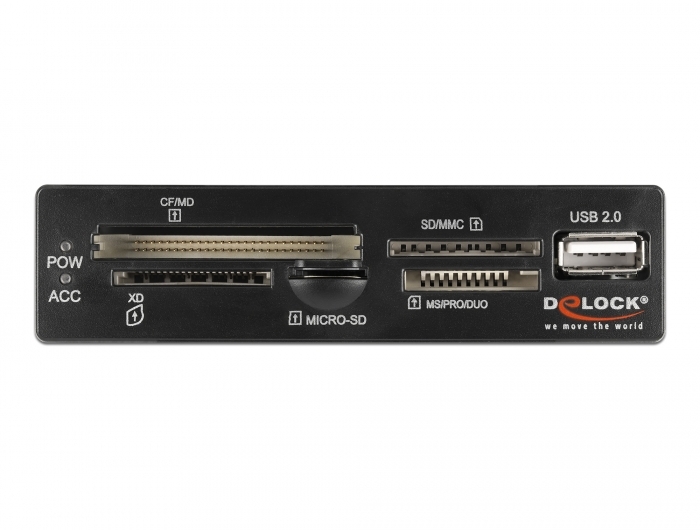

• Connectors:
  external:
  1 x CF slot
  1 x SD / MMC slot
  1 x xD slot
  1 x Micro SD slot
  1 x MS slot
  1 x USB 2.0 Type-A female
  internal:
  1 x 9 pin USB 2.0 pin header female
• Chipset: Realtek RTS5130
• Metal housing for installation into a 3.5″ bay
• Data transfer rate up to 480 Mbps
• Bootable
• LED indicator for the card reader for power (red) and access (green)
• Cable data:
  1 x 9 pin USB 2.0 pin header female cable ca. 53 cm (incl. connector)
• Hot Swap, Plug & Play

• Supports following memory cards:
  Slot 1
  CF I, CF II, CF4.0, CF Ultra, CF Ultra DMA, CF Ultra II, CF Ultra III, CF Ultra IV,
  CF Extreme, CF Extreme III, CF Extreme IV, Microdrive, MagicStor

  Slot 2
  SD, SD Pro, SD Ultra, SD High Capacity (SDHC), Turbo-SD, SDHC Turbo,
  SD Ultra, SD Ultra II, SDHC Ultra, SDXC, SDXC Ultra, MMC-I, MMC-II, MMC plus,
  MMC plus Turbo, MMC 4.0, Mini SD*, Mini SDHC*, Turbo Mini SD*, MMCmobile*,
  RS-MMC*, RS-MMC 4.0*

  Slot 3
  xD, xD type M, xD type H

  Slot 4
  Micro SD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro

  Slot 5
  MS Micro, MS-Pro Micro, MS-HG Micro, MS XC-HG Micro, M2
  *Adapter is required
Package content:
• 3.5″ card reader with connection cable

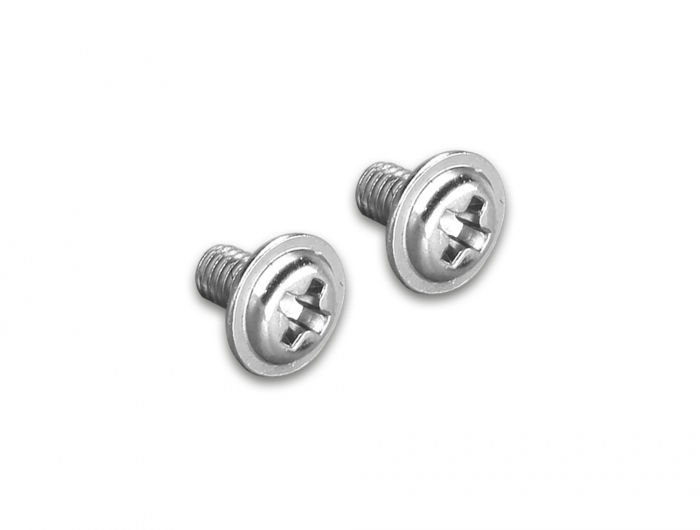

• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/91708/pdf.html?sprache=en
