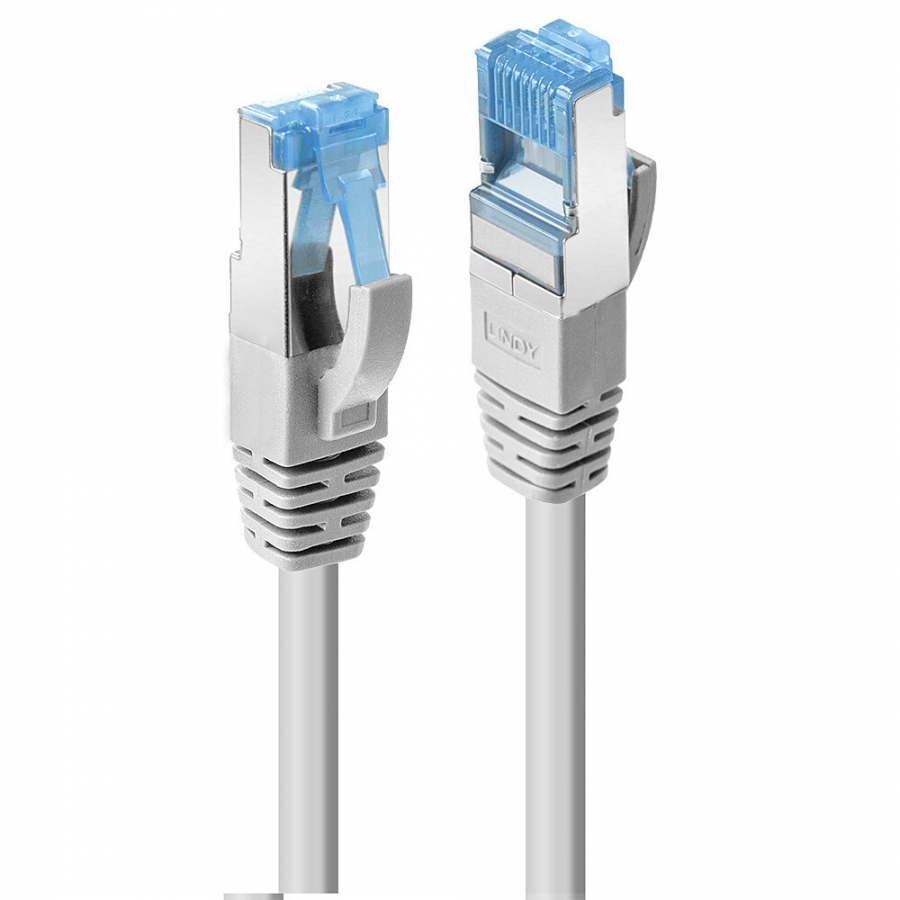

Lindy 50m Cat.6A S/FTP LSZH Cable, Grey

Lindy

LIN47142

New

Connectors

  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)



Cable Construction

  • Length: 50m (165.68ft)
  • Colour: Grey
  • Type: Cat.6A
  • Jacket Diameter: 6.0mm (0.24in)
  • Jacket Material: LSZH
  • Conductor Material: Copper
  • Conductor Gauge: 27AWG
  • Shielding: Aluminium Braid



Specifications

  • Supported Bandwidth: 500MHz
  • Nominal Attenuation: 49.3dB/100m @ 500MHz
  • Minimum Bend Radius: 72mm (2.84in)
  • Operating Temperature: -10°C - 60°C (14F - 140°F)
  • Storage Temperature: -20°C - 75°C (-4F - 167°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, UL



Purchasing Information

  • No.: 47142
  • EAN: 4002888471428



This product is also available in other lengths:

  • 47130 - 0.3m (0.98ft)
  • 47131 - 0.5m (1.64ft)
  • 47132 - 1m (3.28ft)
  • 47133 - 1.5m (4.92ft)
  • 47134 - 2m (6.56ft)
  • 47135 - 3m (9.84ft)
  • 47136 - 5m (16.44ft)
  • 47137 - 7.5m (24.61ft)
  • 47138 - 10m (32.81ft)
  • 47139 - 15m (49.21ft)
  • 47140 - 20m (65.62ft)
  • 47141 - 30m (98.43ft)
  • 47142 - 50m (165.68ft)
  • 47143 - 70m (248.52ft)
  • 47144 - 100m (328.41ft)
