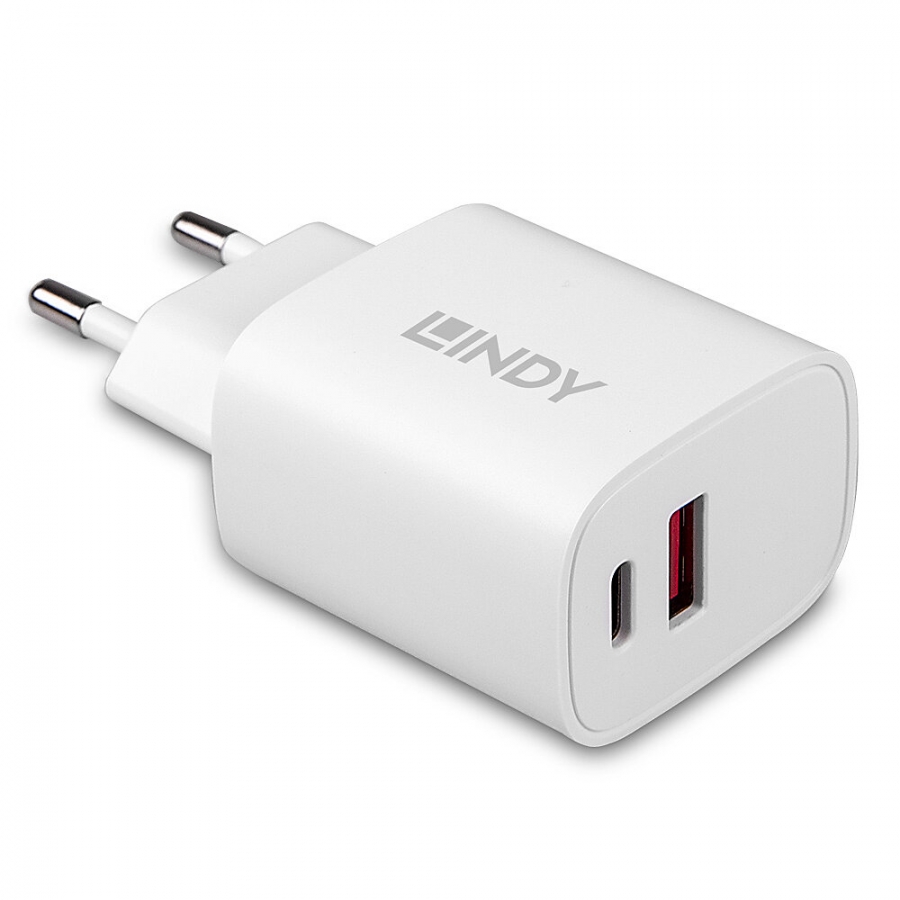

Lindy 20W USB Type A & C Charger

Lindy

LIN73413

New

Connectors

  • Input: Euro Plug
  • Ouput: USB Type A Female, USB Type C Female



Specifications

  • Power Input:100-240VAC, 50-60Hz 0.4A
  • Power Output:
    • USB Type A: 5V 3A, 9V 2A, 12V 1.5A
    • USB Type C: 5V 3A, 9V 2.22A, 12V 1.67A
    • USB Type A & C: 5V 3A
  • USB Power Delivery: PD 3.0 (USB Type C port)
  • Max. Total Power: 20W
  • Output Voltage Accuracy: ± 5%
  • Average Active Efficiency: 5V 81.39%, 9V 85.48%, 12V 85.48%
  • Efficiency at Low Load (10%): 75%
  • No-load Power Consumption: ≤ 0.1W
  • Additional Features: Overcurrent, overvoltage, overtemperature and short-circuit protection



Physical Properties

  • Dimensions (approx.) WxDxH: 42.6x28.81x41.08mm (1.68x1.13x1.62in)
  • Connector Material: Copper
  • Housing Material: PC & ABS
  • Net Weight: 0.050kg (0.11lb)
  • Operating Temperature: 0°C - 25°C (32°F - 77°F)
  • Operating Humidity: 0-70% RH (non-condensing)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Storage Humidity: 0-80% RH (non-condensing)
  • Colour: White



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 81x120x31.5mm (3.19x4.72x1.24in)
  • Gross Weight: 0.075kg (0.17lb)
  • Warranty (Years): 2
  • Product Compliance: CE, RoHS, REACH
  •

Package Contents

  • 20W USB Type A & C Charger
  • Lindy Manual



Purchasing Information

  • No.: 73413
  • EAN: 4002888734134
