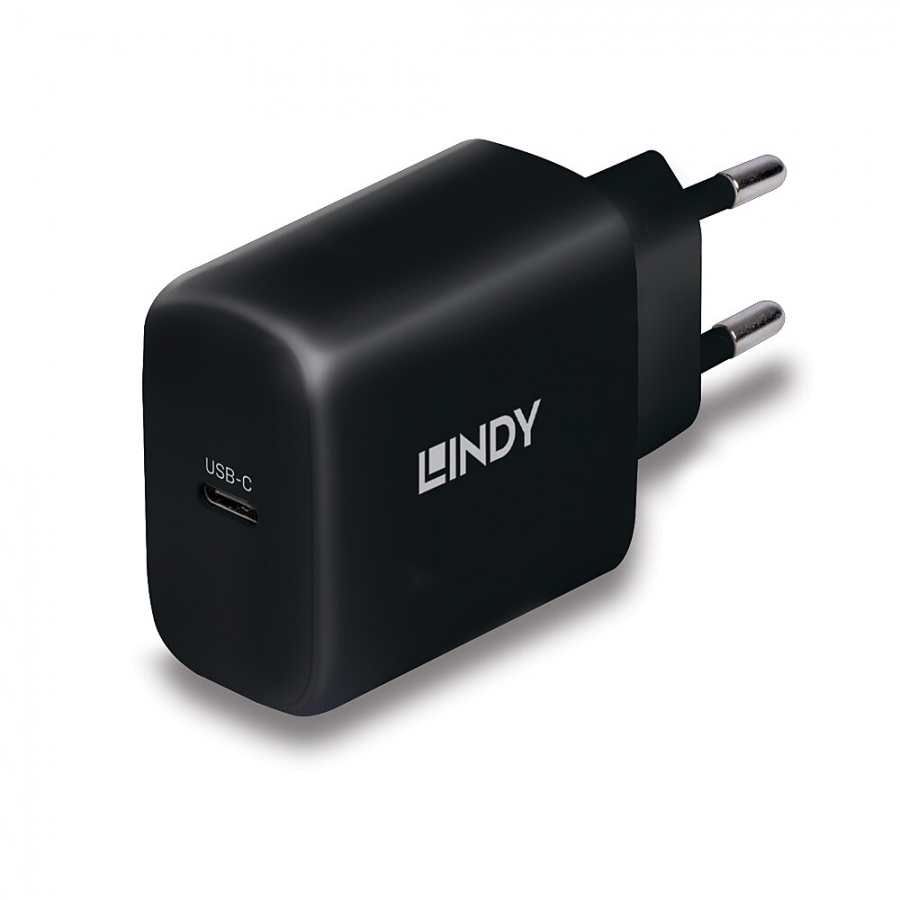

Lindy 65W USB Type C GaN Charger

Lindy

LIN73426

New

Connectors

  • Input: Euro Plug
  • Output: 1x USB Type C Female



Specifications

  • Power Input: 100-240VAC, 50/60Hz 1.5A
  • Power Output
    • USB Type C:  5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A,
    • PPS: 3.3 11V 4.05A, 16V 3A
  • USB Power Delivery: PD 3.0 (USB Type C port)
  • Max. Total Power: 65W
  • Output Voltage Accuracy: ± 5%
  • Average Active Efficiency: 81.38%
  • Efficiency at Low Load (10%): 80.06%
  • No-load Power Consumption: 0.1 W
  • Additional Features: Overcurrent, overvoltage, overtemperature and short-circuit protection



Physical Properties

  • Dimensions (approx.) WxDxH: 26.80x85.30x41.60mm (1.05x3.35x1.63in)
  • Connector Material: Copper
  • Housing Material: PVC
  • Net Weight: 0.04kg (0.09lb)
  • Operating Temperature: 0°C - 25°C (32°F - 77°F)
  • Operating Humidity: 20 – 90% RH (non-condensing)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Storage Humidity: 20 – 90% RH (non-condensing)
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 80x100x45mm (3.15x5.12x1.77in)
  • Gross Weight: 0.06kg (0.13lb)
  • Warranty (Years): 2
  • Product Compliance: CE, RoHS, REACH, ErP



Package Contents

  • 65W USB Type C GaN Charger
  • Lindy Manual



Purchasing Information

  • No.: 73426
  • EAN: 4002888734264
