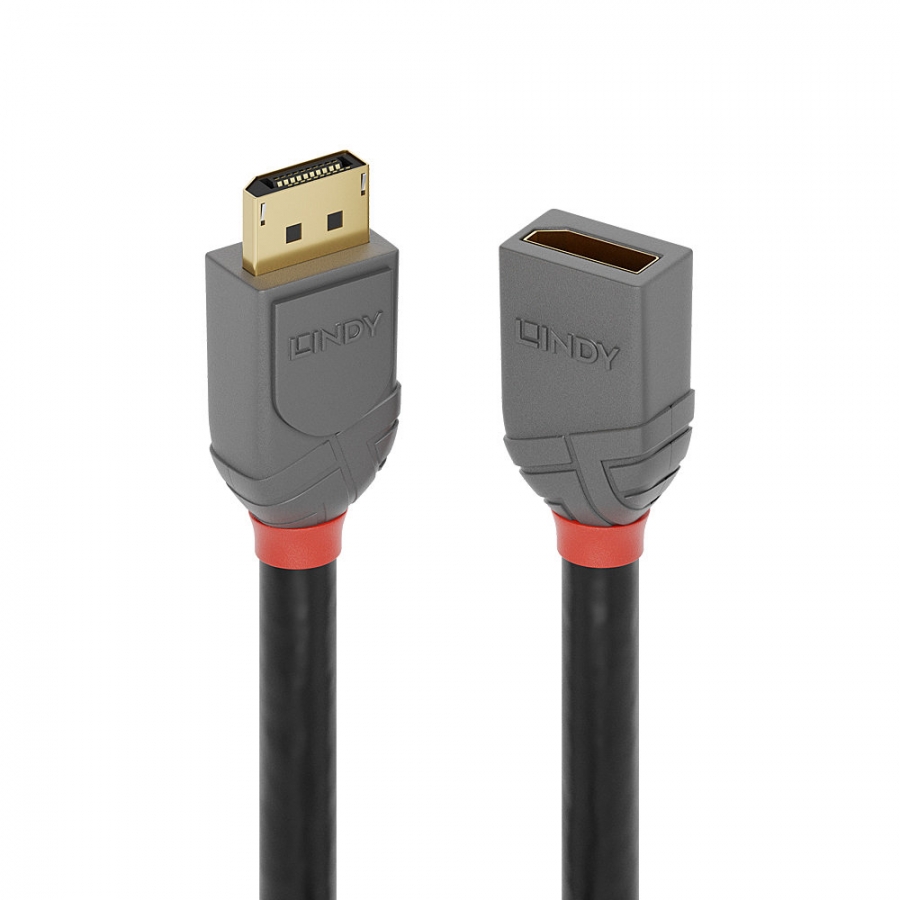

Lindy 1m DisplayPort Extension Cable, Anthra Line

Lindy

LIN36496

New

Connectors:

  • Connector A: DP Male
  • Connector B: DP Female
  • Housing Material: ABS (Male) / PVC (Female)
  • Connector Plating: Gold
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH: M: 20.5x36.0x12.5mm (0.8x1.42x0.49in)
  • F:  20.9x35.0x11,8mm (0.82x1.38x0.46in)



Cable construction:

  • Length: 1m (3.281ft)
  • Standard: DP 1.4
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7.0mm (0.28n)
  • Jacket Material: PVC
  • Conductor Material: Copper Alloy
  • Conductor Gauge: 28AWG
  • Shielding: Aluminium Magnesium Braid 85%



Specifications:

  • Supported Bandwidth: 32.4Gbps
  • Maximum Resolution: 7680x4320@60Hz 4:2:2 8bit
  • Nominal Attenuation: 1.35GHz > -5.5dB (HBR1)
  • 2.7GHz > -8.5dB (HBR2)
  • 4.05GHz > -11.0dB (HBR3)
  • Minimum Bend Radius: 70mm (2.76in)
  • Operating Temperature: -10°C - 80°C (14°F - 176°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)



Miscellaneous:

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, CP65, UL



Purchasing information:

  • No.: 36496
  • EAN: 4002888364966



This product is also available in other lengths:

  • 36495 - 0.5m (1.64ft)
  • 36496 - 1m (3.281ft))
  • 36497 - 2m (6.561ft)
  • 36498 - 3m (9.841ft)







Displayport
