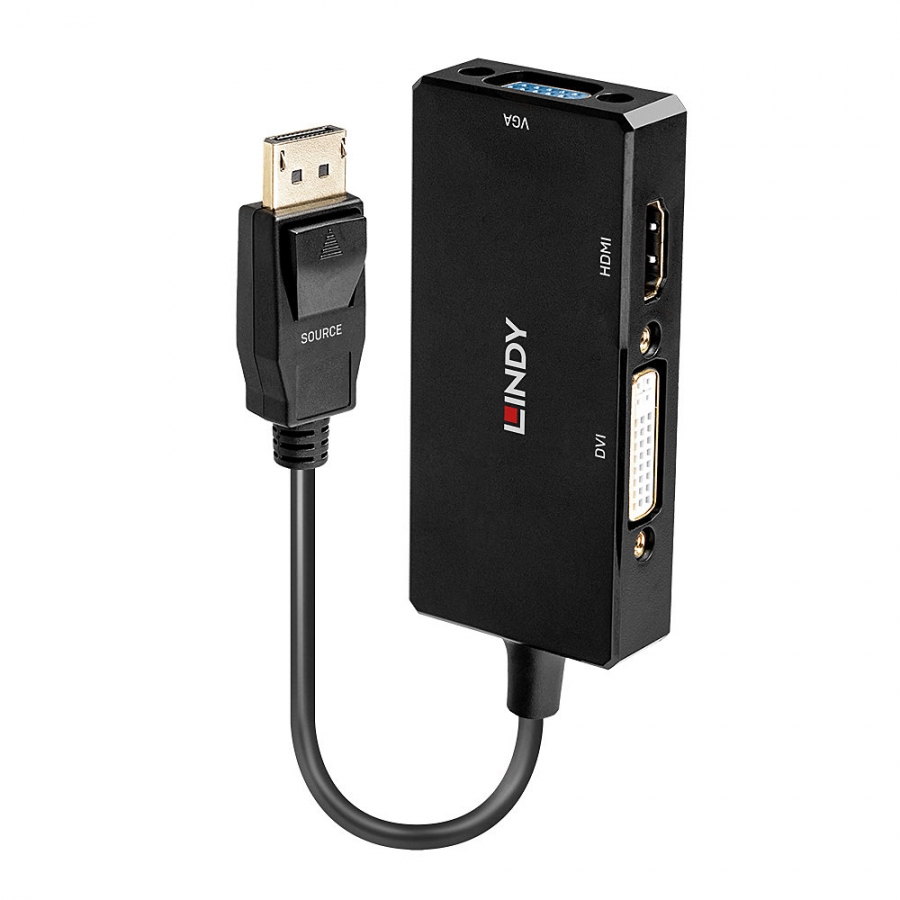

Lindy DisplayPort 1.4 to HDMI 18G, DVI & VGA Converter

Lindy

LIN38312

New

Specifications

  • AV Interface: DisplayPort to HDMI, DVI, VGA
  • Interface Standard: DP 1.4, HDMI 2.0, DVI-I, VGA
  • Supported Bandwidth: 32.4Gbps
  • Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8bit
  • Maximum  Output Resolution: 3840x2160@60Hz  4:4:4 8bit SDR / 4:2:2 10bit HDR (HDMI),  1920x1200@60Hz (DVI) & 1920x1080@60Hz (VGA)
  • Chipset: PS8469, ANX9833
  • HDCP Support: HDCP 2.2
  • Supported Audio: Pass-through for HDMI
  • Separate Audio Ports: -
  • Special Features: -



Connectors

  • Input: DisplayPort Male
  • Output:
    • HDMI Type A Female
    • DVI-I Female
    • VGA Female
  •

Physical properties

  • Dimensions (approx.) WxDxH:
    • Connector: 57.8x20.9x13.7mm (2.28x0.82x0.54in)
    • Housing: 87.7x40.7x6.7mm (3.45x1.6x0.26in)
  • Cable Length: 150mm (5.91in)
  • Housing Material: ABS
  • Jacket Material: PVC
  • Jacket Diameter: 5.2mm (0.2in)
  • Minimum Bend Radius: 40mm (1.57in)
  • Net Weight: 0.055kg (0.12lb)
  • Operating Temperature: 0°C - 45°C (32°F - 113°F)
  • Storage Temperature: -10°C - 70°C (14°F - 158°F)
  • Humidity: 10 - 85% RH (non-condensing)
  • Colour: Black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
  • Gross Weight: 0.063kg (0.14lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH, California Proposition 65



Package Contents

  • DisplayPort 1.4 to HDMI 18G, DVI & VGA Converter
  • Lindy Manual



Purchasing Information

  • No.: 38312
  • EAN: 4002888383127
