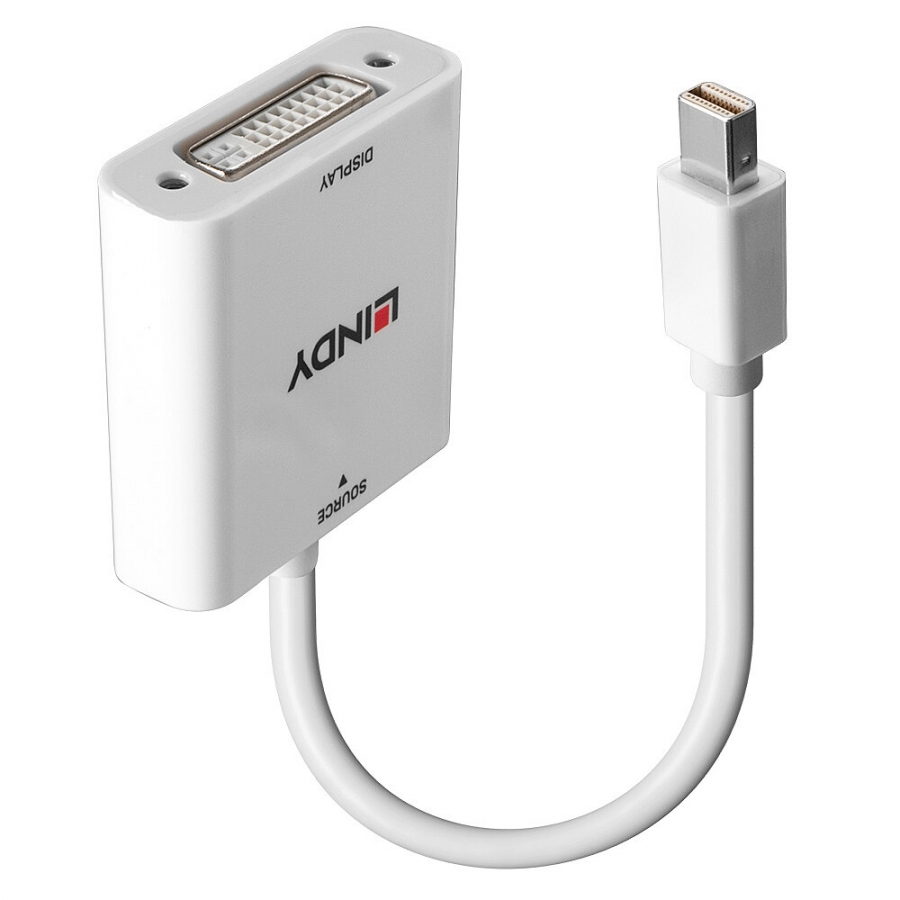

Lindy Mini DisplayPort to DVI Converter

Lindy

LIN38318

New

Specifications

  • AV Interface: Mini DisplayPort to DVI
  • Interface Standard: DisplayPort 1.1
  • Supported Bandwidth: 4.45Gbps
  • Maximum Input Resolution: 1920x1200@60Hz
  • Maximum  Output Resolution: 1920x1200@60Hz
  • Chipset: NXP PTN3361
  • HDCP Support: HDCP 1.4, HDCP 2.2
  • Supported Audio: -
  • Separate Audio Ports: -
  • Special Features: Passive converter



Connectors

  • Input: Mini DisplayPort (Male)
  • Output: DVI-I (Female)



Physical properties

  • Dimensions (approx.) WxDxH:
    • 18.9x11x9.3mm (0.71x0.43x0.37in)
    • 44.5x44.5x15mm (1.75x1.75x0.59in)
  • Cable Length: 180mm (7.09in)
  • Housing Material: ABS
  • Jacket Material: PVC
  • Jacket Diameter: 5.5mm (0.22in)
  • Minimum Bend Radius: 33mm (1.3in)
  • Net Weight: 0.026kg (0.06lb)
  • Operating Temperature: -20° to 40° (-4°F - 104°F)
  • Storage Temperature: -40° to +80° (-40°F - 176°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Colour: Black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 176x194x20mm (6.93x7.64x0.79in)
  • Gross Weight: 0.038kg (0.08lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH, Calif. Prop. 65



Package Contents

  • Mini DisplayPort to DVI Converter



Purchasing Information

  • No.: 38318
  • EAN: 4002888383189


Displayport
