Delock Thunderbolt™ 3 Docking Station 5K - HDMI / USB 3.0 / USB-C™ / SD / LAN

DELOCK

87725

New

This Thunderbolt™ 3 docking station by Delock can be connected to a computer with a Thunderbolt™ 3 port and provides a variety of interfaces. The Thunderbolt™ 3 port supports a resolution up to 5K and is compliant to USB, therefor it is possible to connect all USB Type-C™ devices. Two 4K monitors can be operated simultaneously at the Thunderbolt™ 3 and HDMI outputs. Five built-in USB Type-A ports allow the use of peripherals, and connections for a headset and gigabit network, as well as an SD card reader, complete the features. A connected laptop such as the Macbook or Chromebook will be charged during operation.
System requirements:
• Windows 8.1/8.1-64/10/10-64, Mac ex OS 10.12
• PC or laptop with a free Thunderbolt™ 3 port
Specification:
• Connectors:

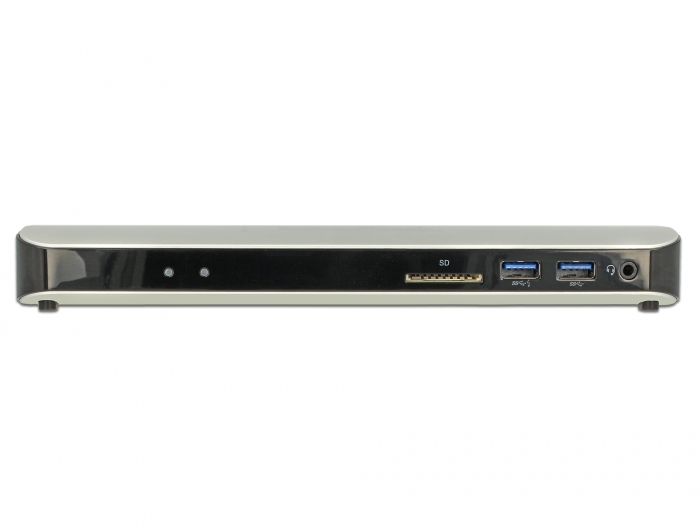

  front side:
    1 x USB 3.0 Type-A female
    1 x USB 3.0 Type-A female - Battery Charging specification BC1.2
    1 x SD / SDHC / SDXC slot
    1 x Headset 3.5 mm 4 pin jack

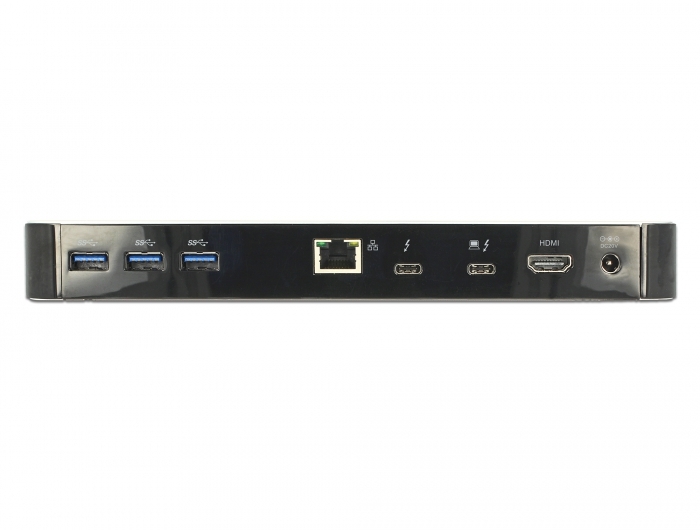

  back side:
    1 x Thunderbolt™ 3 female (connection to computer)
    1 x Thunderbolt™ 3 female
    1 x HDMI-A 19 pin female
    3 x USB 3.0 Type-A female
    1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
    1 x DC jack
• Video outputs supports: extended and mirror
• Resolution up to:
  Windows:
    1 x 5120 x 2880 @ 60 Hz (depending on the system and the connected hardware)
    2 x 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
  Mac:
    2 x 3840 x 2160 @ 30 Hz (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Output power for host: max. 60 W
• Metal housing
• Rubber pads for safe grip and secure stand
• Colour: silver
• Dimensions (LxWxH): ca. 230 x 87 x 27 mm

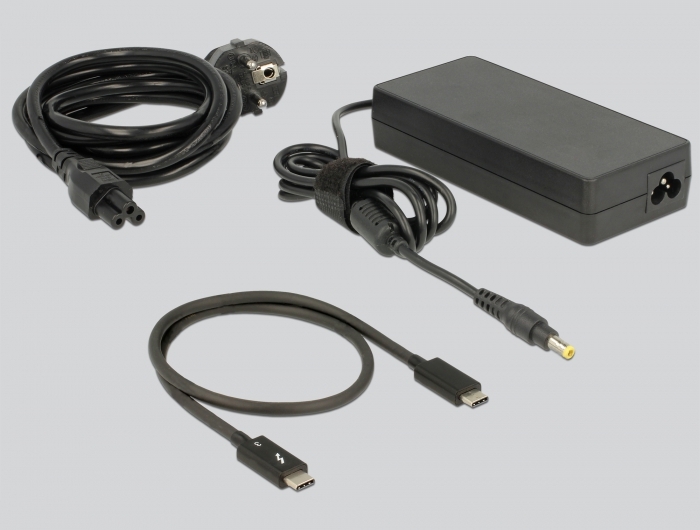

Package content:
• Thunderbolt™ 3 docking station
• Thunderbolt™ 3 cable, length ca. 50 cm
• Power supply
• User manual
Data sheet:
http://www.delock.de/produkt/87725/pdf.html?sprache=en
