Delock USB Docking Station Dual HDMI Full-HD / USB 3.2 / LAN / Audio

Reference 87771

Condition: New

More info

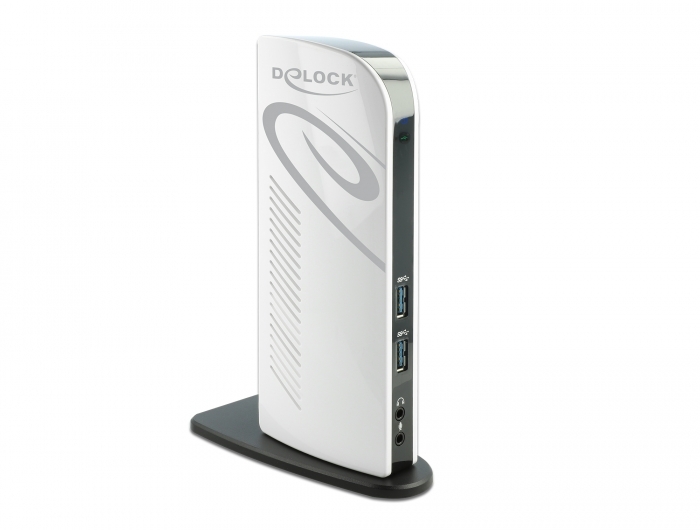

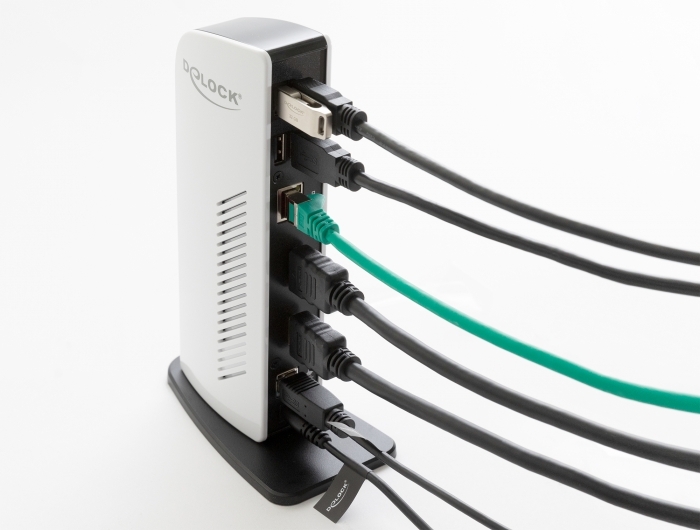

This docking station by Delock can be connected to a computer with a USB-C™ or USB Type-A port and provides a variety of interfaces. Two monitors can be operated simultaneously at the HDMI output ports. Four built-in USB 2.0 ports and two USB 3.2 Gen 1 ports allow the use of peripherals, and connections for microphone and speaker and Gigabit network complete the features.

Full-HD resolution
Full-HD (1080p) resolution is possible when using only one monitor and also when using both HDMI outputs at the same time.

System requirements:
• Mac OS 10.15.5 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port or
• PC or laptop with a free USB Type-C™ port

Specification:

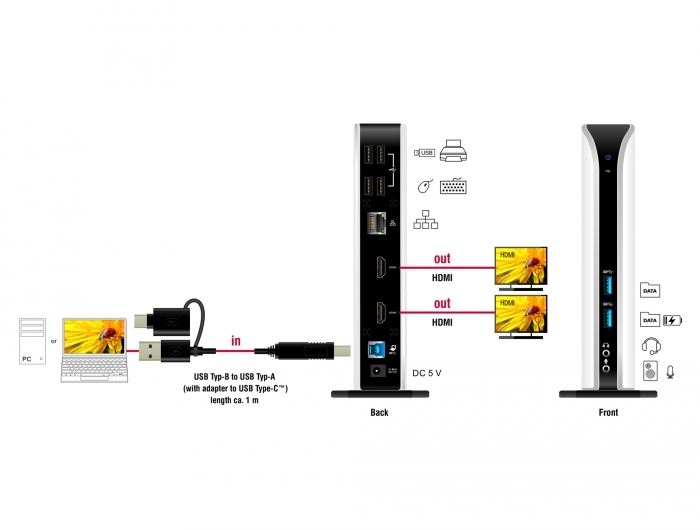

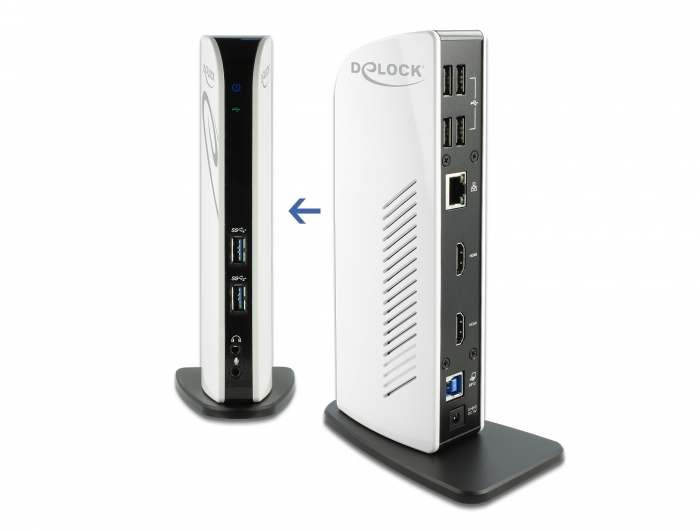

• Connectors:
  front side:
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female - Battery Charging specification
BC1.2
  1 x microphone 3.5 mm stereo jack
  1 x speaker 3.5 mm stereo jack
  back side:
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-B female
  1 x DC 5 V power connector
  2 x HDMI-A female
  1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
  4 x USB 2.0 Type-A female
• Maximum resolution (depending on the system and the connected hardware):
  Single display: up to 2560 x 1440 @ 50 Hz
  Dual display: up to 2048 x 1152 @ 60 Hz
• Transmission of audio and video signals
• Functions: Mirrored or Extended (under Windows only one display can be mirrored,
the second one is extended)
• Colour: black / white
• Dimensions without stand (LxWxH): ca. 190 x 78 x 38 mm

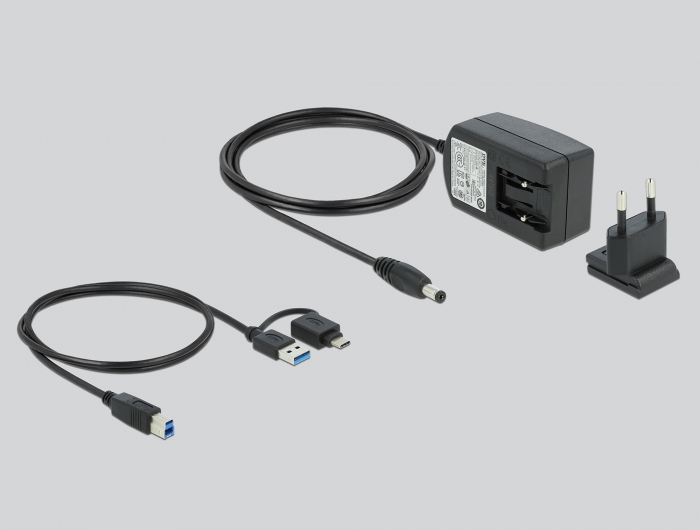

Package content:
• USB docking station
• Cable USB Type-B male to USB Type-A male (with adapter to USB Type-C™ male),
length ca. 1 m
• Power supply
• User manual
