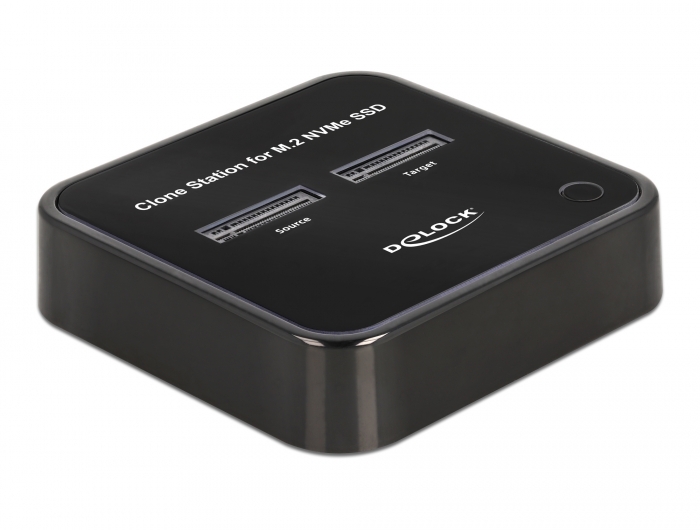

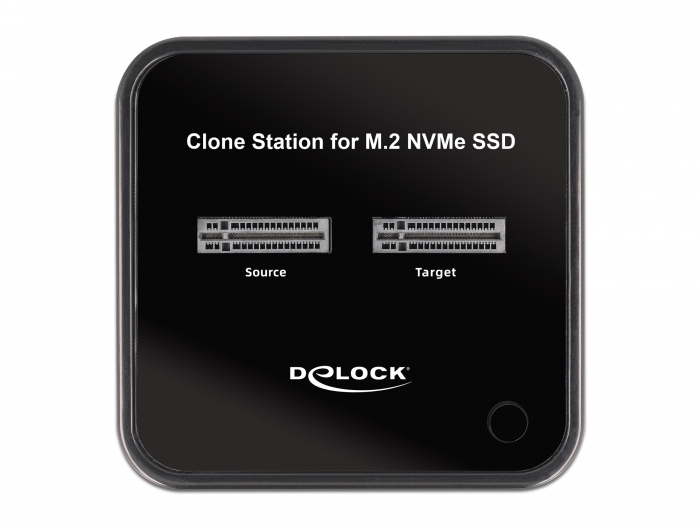

Delock M.2 Docking Station for 2 x M.2 NVMe PCIe SSD with Clone function

DELOCK

64177

New

This M.2 docking station by Delock enables the installation of two M.2 PCIe NVMe SSDs and it can be connected via USB to the PC or laptop. The included USB cable allows the connection to a free USB-C™ port.

M.2 PCIe SSD clone function

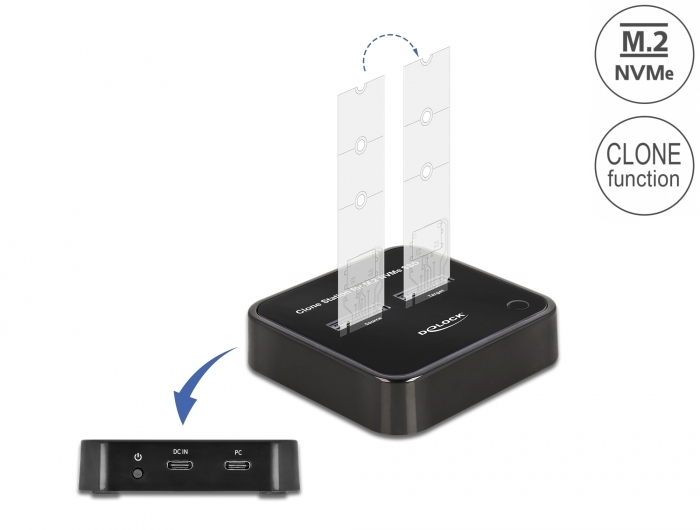

The clone function enables to copy the content of one SSD to another without using a PC.

Ideal test equipment
The memory is simply plugged into the robust housing and can be used immediately. No screws, tools or accessories are required, which means that the SSD can be changed quickly.
System requirements:
• Android 10.0 or above
• Chrome OS 83.0 or above
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Specification:

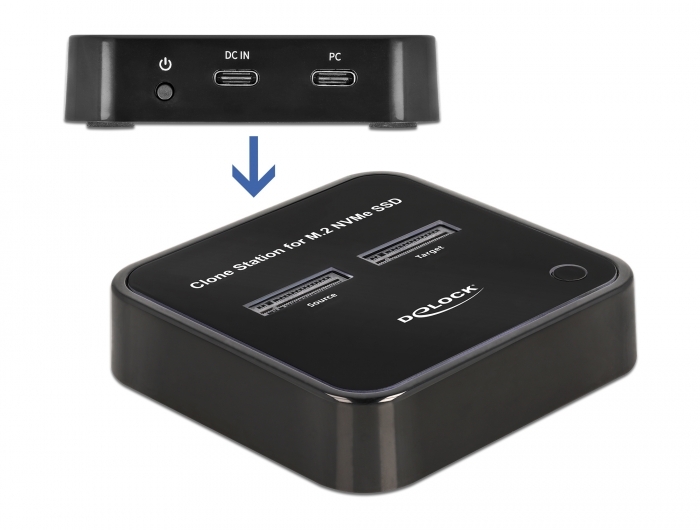

• Connectors:
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
  2 x 67 pin M.2 key M slot
  1 x USB Type-C™ female (power supply)
• Chipset: Asmedia ASM2362
• Supports M.2 modules with key M or key B+M based on PCIe (NVMe)
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• Supports UASP

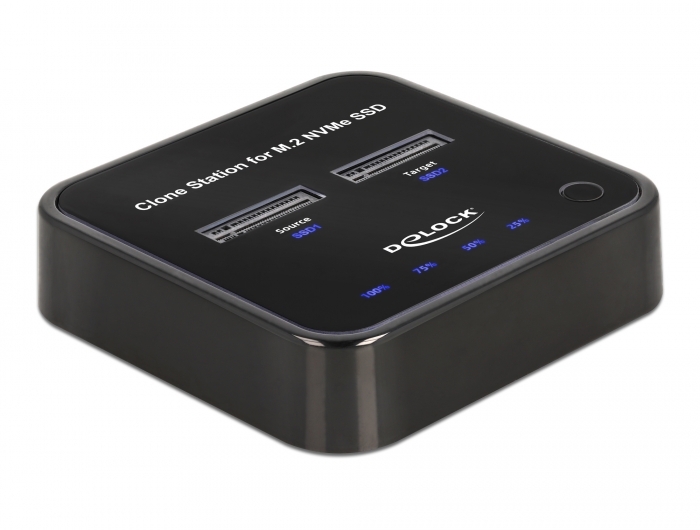

• LED indicator for power, access and copy status
• Function key:
  1 x Clone button
  1 x On / Off switch
• Bootable
• Dimensions (LxWxH): ca. 72 x 79 x 18 mm
• Hot Plug, Plug & Play

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 5.0 V / 3.0 A
Package content:
• M.2 docking station
• Cable USB-C™ male to USB-C™ male, length ca. 45 cm
• Cable USB-C™ male to USB Type-A male, length ca. 80 cm (power supply)
• External power supply
• User manual
Data sheet:
http://www.delock.de/produkt/64177/pdf.html?sprache=en
