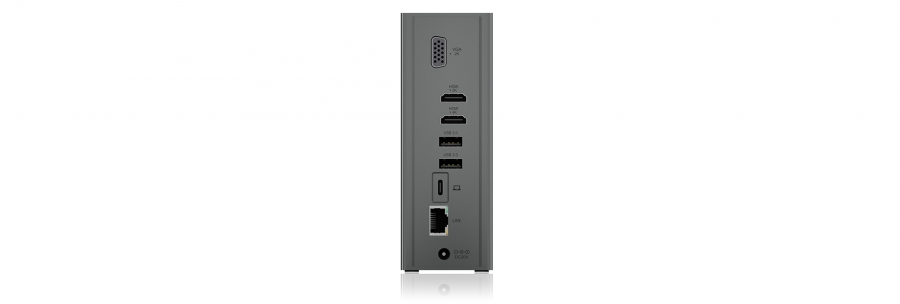

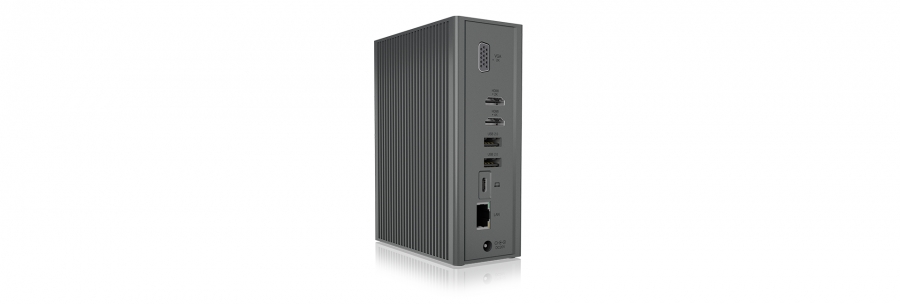

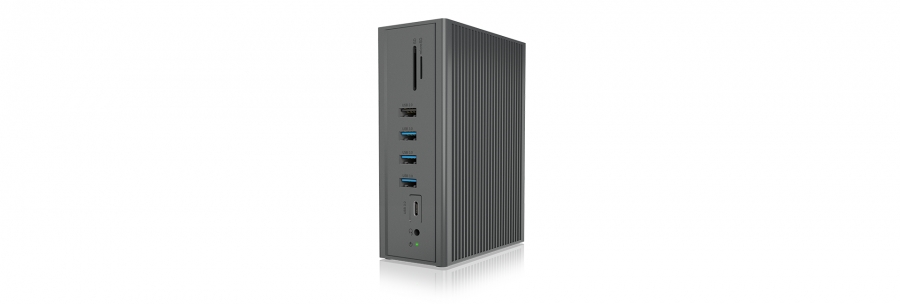

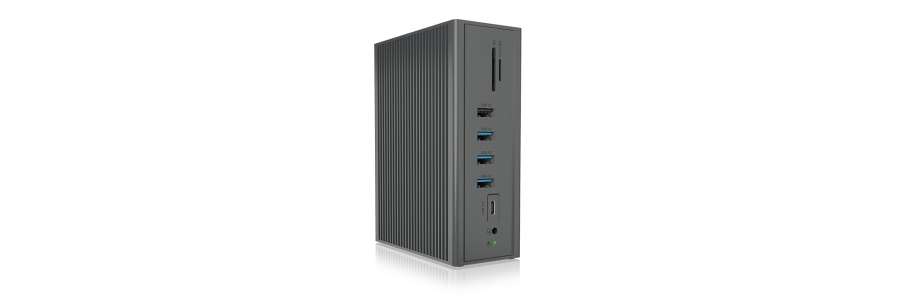

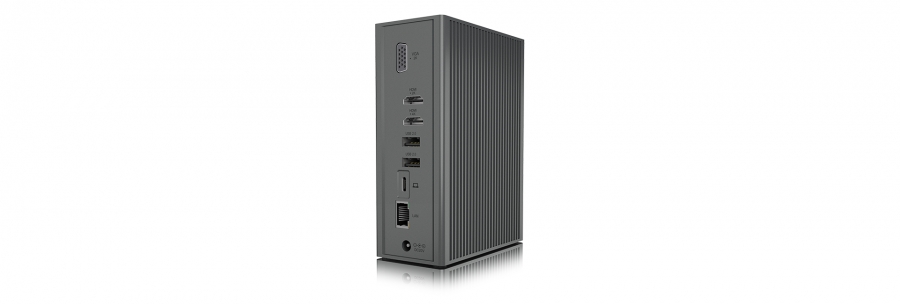

Icy Box Dockingstation IcyBox USB 3.0 -> DP/USB3.0/LAN/3x Video

ICY BOX

IB-DK2262AC

New

Rugged aluminium design The IB-DK2262AC's solid housing is made of strong aluminium alloy, which makes this housing more durable than ordinary aluminium or plastic products, effectively protecting the DockingStation and equipping it for a wide range of use conditions. The aluminium material and the heat sink design with cooling fins support heat dissipation for an excellent passive cooling effect and protect the unit from overheating even under heavy use.Triple video output The IB-DK2262AC provides up to three video interfaces of different resolutions with two HDMI® and one VGA connection, enabling the simultaneous connection of HDMI® and VGA display devices in expansion mode. This is achieved by combining state-of-the-art technologies such as DisplayLink® and DisplayPort™ Alt Mode.LAN port – fast and safe Wireless devices are certainly more convenient and good to use in many situations, and yet there are better options if you need high data transfer rates, for example. In addition, wired connections are more secure than wireless connections. Especially if you don‘t want to or can‘t fully exploit the security measures available via WLAN, LAN connections offer less risk. Then an Ethernet interface is the best way to transfer files between devices with high security and maximum transfer rate.

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
Microphone inN
Headphone outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Power DeliveryY
USB Power Delivery up to55 W
VGA (D-Sub) ports quantity1
Combo headphone/mic portY
DC-in jackY
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Product colourAnthracite
Card reader integratedY
Compatible memory cardsMicroSD (TransFlash), SD
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Maximum analog resolution1920 x 1080 pixels
Number of displays supported3
Maximum refresh rate60 Hz
LED indicatorsPower
Housing materialAluminium
Country of originChina
Power source typeAC
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power supply65 W
Output voltage20 V
Output current3.25 A
Windows operating systems supportedWindows 10, Windows 11, Windows 8
Mac operating systems supportedY
Other operating systems supportedChromeOS
Width50 mm
Depth140 mm
Height103 mm
Weight480 g
Quantity per pack1 pc(s)
Package weight1.19 kg
Cables includedAC, USB Type-C to USB Type-C
AC adapter includedY
ManualY
Products per master (outer) case12 pc(s)
Master (outer) case width210 mm
Master (outer) case length350 mm
Master (outer) case height455 mm
Master (outer) case gross weight14.3 kg
Harmonized System (HS) code84733020

Docking Station
