Alogic Dockingstation Thunderbolt 4 Blaze Triple Outputs

Reference TB4D3TB

Condition: New

More info

Thunderbolt 4 Blazing Performance

Designed for when speed and performance matter, the dock provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt docks which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE docking station can connect up to 3x downstream Thunderbolt 4 / USB 4.0 peripherals. With the addition of the inbuilt SD 4.0 card reader this dock offers unparalleled productivity for creative professionals.

Single Cable Simplicity –96W Charging

This dock truly does it all –and all over a single cable. In addition to transferring data and video over a single connection to the computer, the dock can also provide up to 96W of power to charge laptops using USB Power Delivery technology. This is sufficient to power almost any notebook PC including 16” MacBook devices.

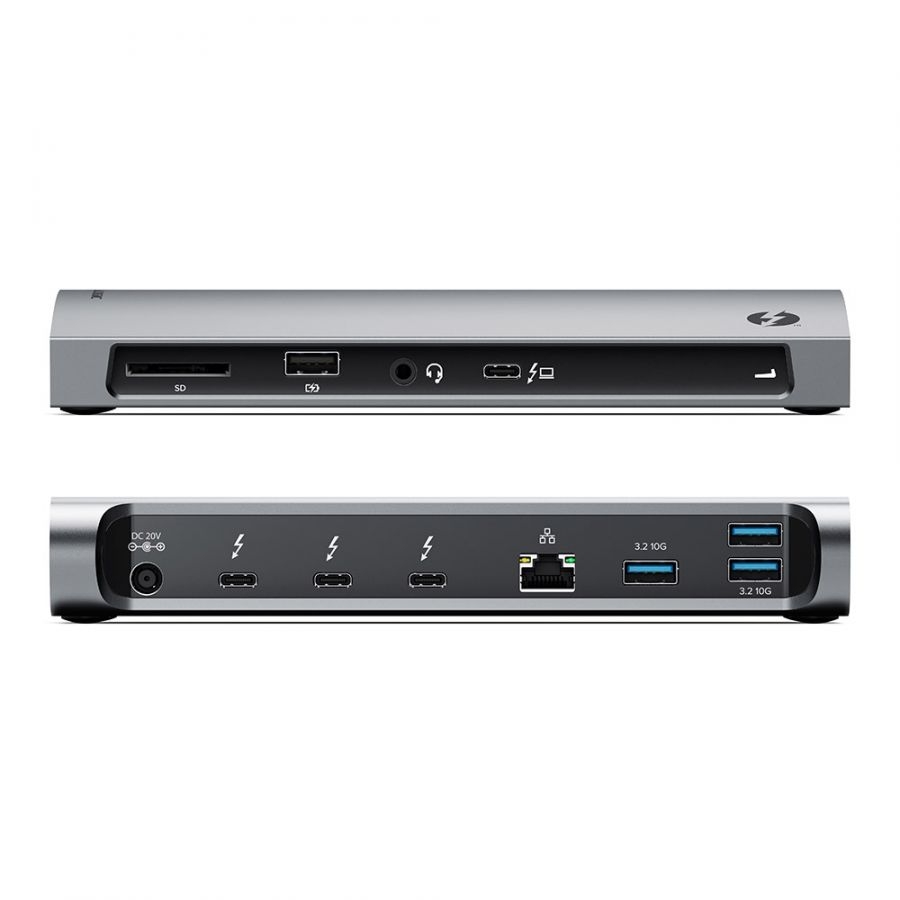

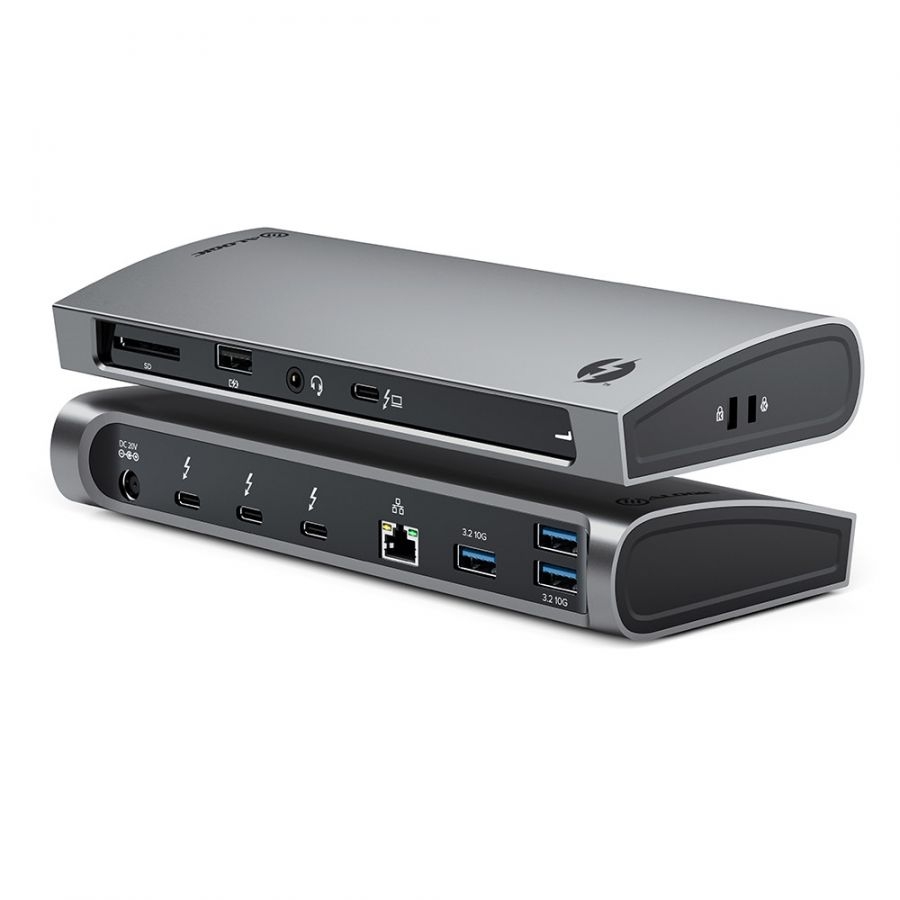

Comprehensive Connectivity

The ALOGIC BLAZE dock features a comprehensive range of ports to allow connection of all standard peripherals including:
- 3 x Thunderbolt/USB-C (40G)
- 3 x USB-A (10G)
- 1 x USB-A with Mobile Device Charging (480Mbps)
- Gigabit Ethernet
- Combo Headphone/Microphone Jack
- SD 4.0 Card Reader

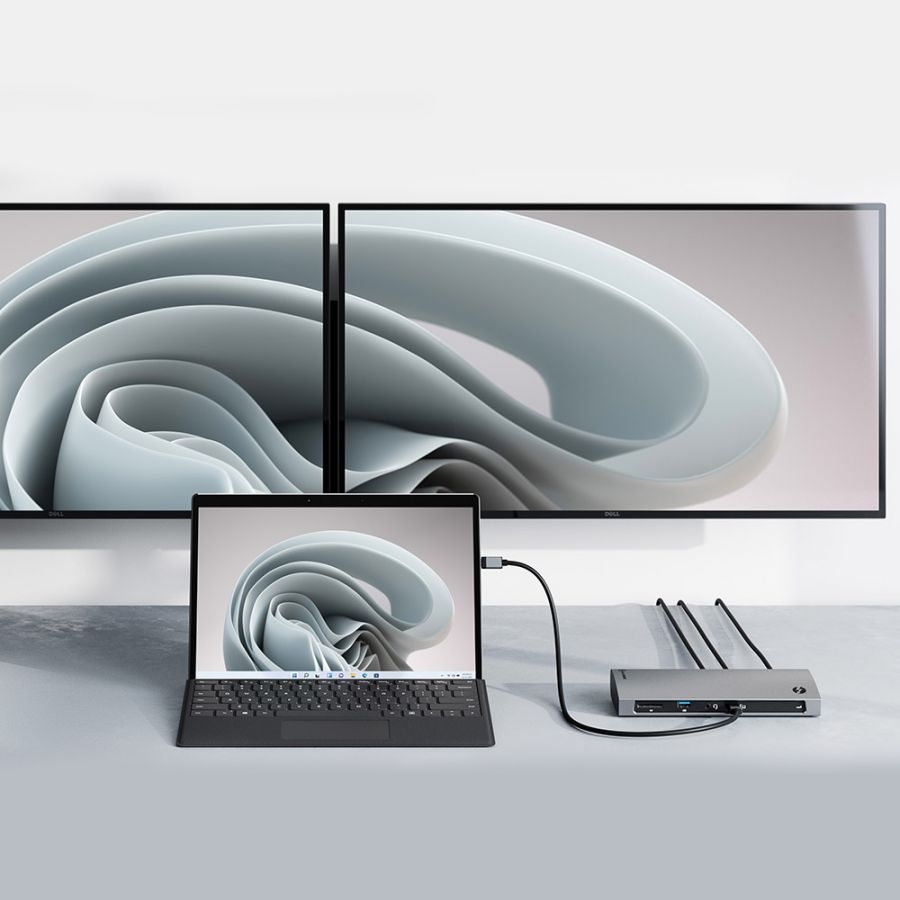

Dual Ultra-High Definition Display: 4K@60Hz

The BLAZE dock provides dual monitor support for Thunderbolt equipped host computers and single monitor support for hosts connected using USB-C (DP Alt Mode) as follows:

- Thunderbolt 3 or 4: Dual 4K monitors at 60Hz
- USB-C (DP Alt Mode): Single 4K monitor at up to 60Hz

Connectivity technology	Wired
Host interface	Thunderbolt 4
USB 2.0 ports quantity	1
Microphone in	Nē
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Thunderbolt 4 ports quantity	3
Combo headphone/mic port	Jā
Headphone connectivity	3.5 mm
DC-in jack	Jā
Ethernet LAN	Jā
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	1000 Mbit/s
Product colour	Black
Card reader integrated	Jā
Compatible memory cards	SD
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Cable lock slot	Jā
LED indicators	Jā
Plug and Play	Jā
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium
Compatibility	Apple, Microsoft
Power supply	135 W
Power consumption (max)	96 W
Width	84 mm
Depth	194 mm
Height	30 mm
Quantity per pack	1 pc(s)
Cables included	AC
AC adapter included	Jā
Manual	Jā
