Delock USB Docking Station for 3 x SATA HDD / SSD with 1:2 Clone Function

Reference 64332

Condition: New

More info

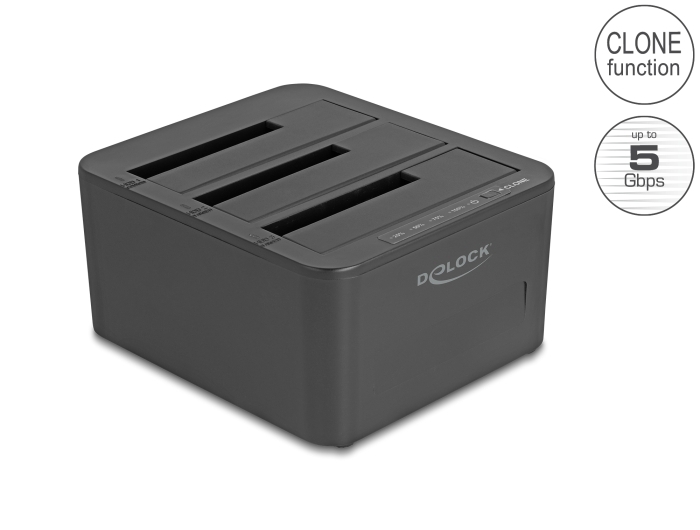

This docking station by Delock enables an external connection of up to three 2.5″ or 3.5″ SATA HDDs or SSDs through the USB interface. This solution does not require an external enclosure since the drive can just plug in directly into the docking station.

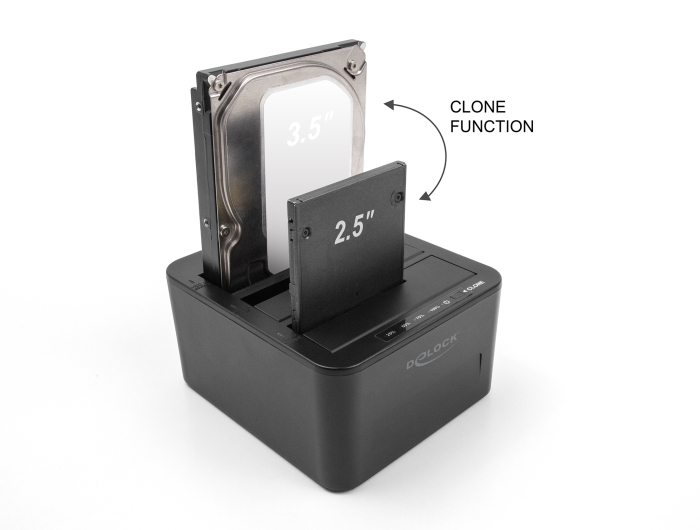

Clone Function
The clone function enables to copy the content of one HDD to one or two drives without using a PC.

System requirements:
• Android 14.0 or above
• Chrome OS
• Linux Kernel 6.5 or above
• Mac OS 14.5 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• PC or laptop with a free USB Type-A port

Specification:

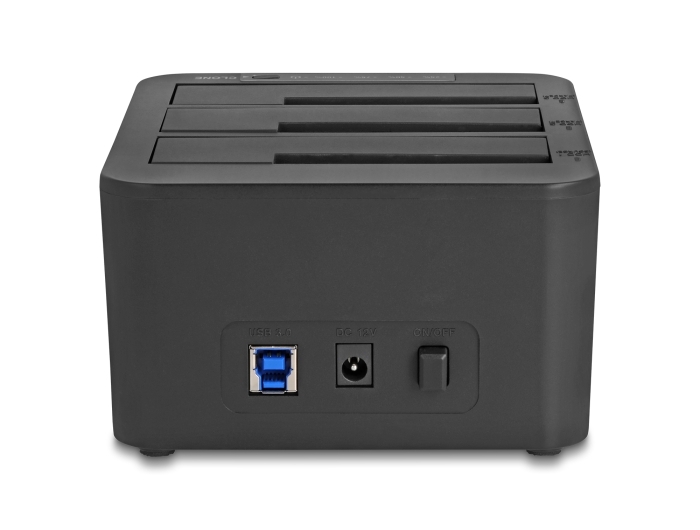

• Connectors:
  1 x USB 5 Gbps Type-B female
  3 x SATA 6 Gb/s 22 pin receptacle
  1 x DC jack
• Chipset: JMicron JMS562
• Function key:
  1 x Clone button
  1 x On / Off switch
• For 2.5″ and 3.5″ SATA HDD / SSD
• Suitable for all SATA HDDs up to SATA 6 Gb/s
• Data transfer rate up to 5 Gbps

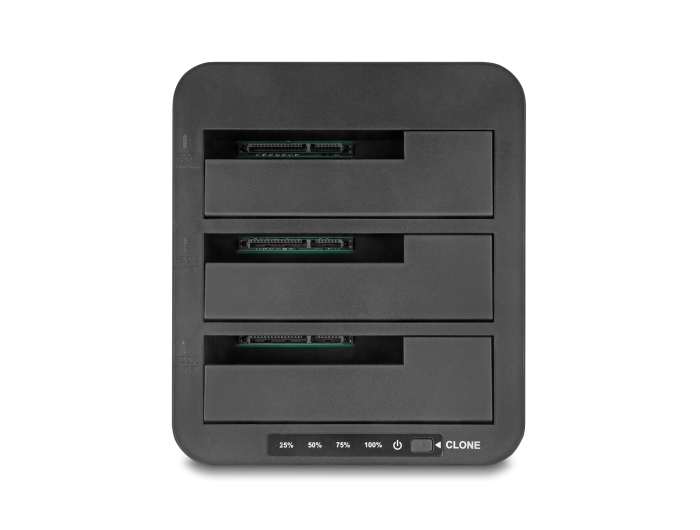

• LED indicator for power, access and copy status
• Bootable
• Dimensions (LxWxH): ca. 139 x 121 x 69 mm
• Plug & Play

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 12.0 V / 4.0 A / 48.0 W
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 10 mm

Package content:

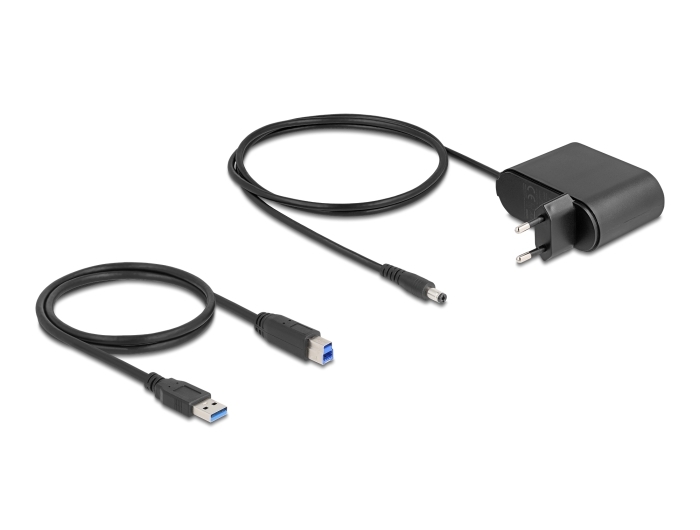

• Docking station
• Cable USB Type-A male to Type-B male, length ca. 1 m
• External power supply
• User manual
