Level One LevelOne Switch 24x GE GEP-2841 2xGSFP 19" 370W 24xPoE+

LEVEL ONE

GEP-2841

New

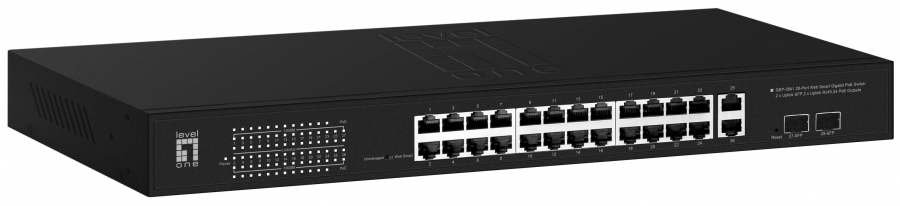

The LevelOne GEP-2841 Web Smart Gigabit PoE Switch, provides 24 PoE ports 10/100/1000Base-T plus 2 port Gigabit Uplink SFP and 2 port Gigabit Uplink RJ45 to enable high speed network. With the plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. It offers powerful enhanced PoE functionality and a total PoE budget of 375W. and it is fully complied with IEEE802.3af/at/bt PoE standard at maximum 90W(1-2 port) power budget. supports up to 30W output power per PoE port, giving you power distribution flexibility for a wide range of PoE PD devices. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed.

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportY
Web-based managementY
Basic switching RJ-45 Ethernet ports quantity26
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
SFP module slots quantity2
Power connectorAC-in jack
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates10,100,1000 Mbit/s
VLAN supportY
MAC address table8000 entries
Jumbo frames supportY
Jumbo frames9000
Loop protectionY
Rack mountingY
StackableN
Form factor1U
Product colourBlack
LED indicatorsY
Country of originChina
CertificationCE, RoHS
Internal memory4.1 MB
Firmware upgradeableY
FanlessN
Power sourceAC
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current4 A
Power consumption (max)400 W
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) power per port15.4 W
Total Power over Ethernet (PoE) budget375 W
Operating temperature (T-T)-10 - 65 °C
Storage temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Width438 mm
Depth220 mm
Height45 mm
Weight2.34 kg
Cables includedAC
Quick start guideY
Package typeBox
Rack mount kitY
Package width497 mm
Package depth299 mm
Package height93 mm
Package weight3 kg
Harmonized System (HS) code85176990
