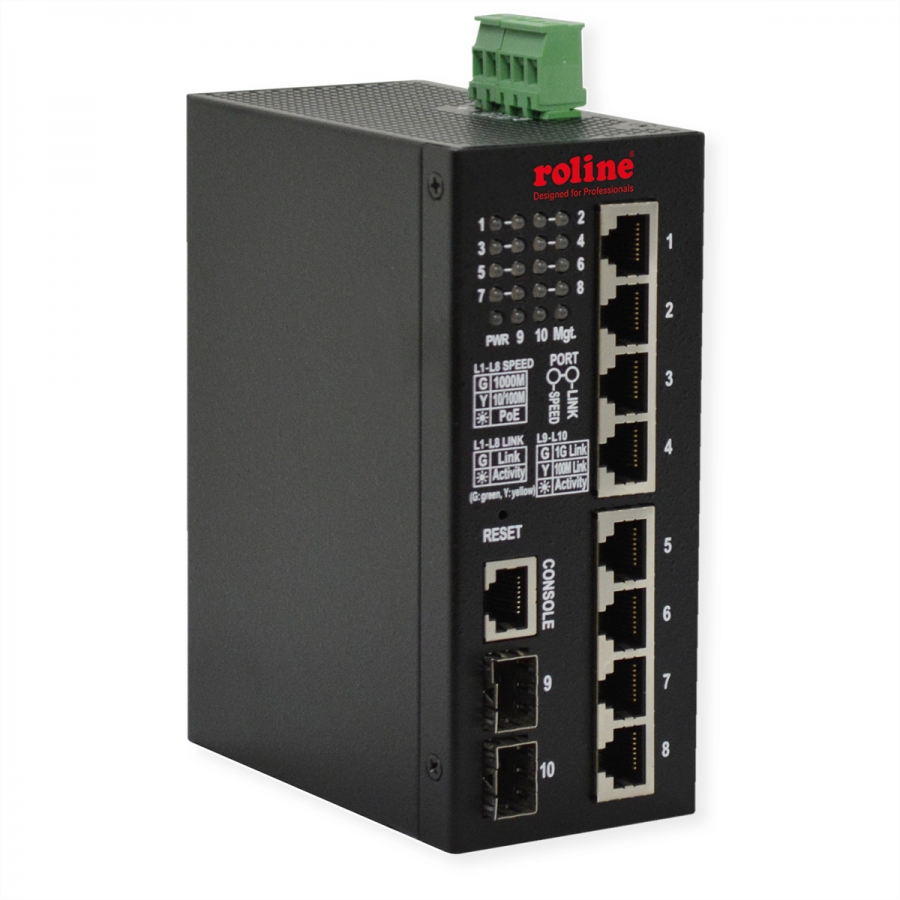

ROLINE Gigabit Switch 10-Port, (8x RJ45+2x SFP) Layer2 PoE+ Smart Managed, 240W

ROLINE

21.13.1131

New

Industrial Managed Gigabit Switch with 8x 10/100/1000Mbps RJ-45 and two dual-speed SFP slots.

  • Eight 10/100/1000Mbps RJ-45 and two dual-speed SFP slots
  • All copper ports support auto-negotiation and auto-MDI/MDI-X detection
  • All copper ports are equipped with 802.3bt-compliant PoE PSE
  • Two SFP slots support dual speed for 100BASE-FX and 1000BASE-X SFP transceivers
  • Full wire speed forwarding
  • Supports 802.3x flow control for full-duplex and backpressure for half-duplex
  • Supports SFP with Digital Diagnostic Monitoring (DDM)
  • Provides PoE PSE redundancy function
  • Provides fiber optical power alarm function, Automatic Laser Shutdown function
  • Power voltage DC 12V-60V (General applications) / 45 - 57VDC (PoE applications)
  • Operating Temperature: -30ºC - 70ºC
  • Storage Temperature: -40ºC - 85ºC
  • Relative Humidity: 5% - 95% non-condensing
Management:
  • HTTP/HTTPS/SSHv2/CLI telnet/CLI console/SNMP v1/v2c/v3/RMON
  • DHCP/DHCPv6 client, DNS client, NTPv4
  • IPv6 support, System Syslog, Configuration down/upload, Software upload
  • private MIB for DDM monitoring, Remote boot, TFTP firmware update via SNMP

Security:
  • NAS, 802.1X, MAC-based/Web/CLI authentication, IP MAC binding, TACACS+, IP source guard

Layer 2:
  • QoS, 802.1Q/MAC-based/Protocol-based/Private/IP subnet VLAN, Port Isolation
  • Storm control for UC/MC/BC packets
  • Static MAC configuration
  • IGMP v2/v3 snooping, MLD v1/v2 snooping, DHCP snooping
  • Multiple Spanning Tree – MSTP, RSTP, STP

Auto Multi-Ring (KAMR) Technology:
  • Fast failover response time
  • Auto recovery when failure is repaired
  • Supports up to Five redundant rings
  • Works with RSTP network
  • Supports ring member status monitoring for up to 100 units


ManufacturerROLINE
Product groupNetwork Components
Product typePoE Gigabit Switch
Colourblack
Scope of deliveryIndustrial Managed Gigabit Switch, Installation Instructions
Network standardGigabit Ethernet
LAN (Mbps)10/100/1000
Quantity of ports10
Gigabit Ethernet Ports RJ-458
Free slots for SFPs2
Power over Ethernet (PoE)PoE+
Quantity of PoE ports8
Max. PoE output power per port30 W
Max. PoE output power (total)240 W
Dimensions (HxWxD)60 x 106 x 140 mm
Mains connectionLoose cable / screw terminals
Operating temperature min.-30 °C
Operating temperature max.70 °C
Height60 mm
Width106 mm
Depth140 mm
Weight768.1 g
Height of packaging (single piece)90 mm
Width of packaging (single piece)160 mm
Depth of packaging (single piece)260 mm
Package weight (single piece)1 kg
Current catalog editionC24-New.02
