Delock Cable Gland 90° angled PG13.5 black

DELOCK

60298

New

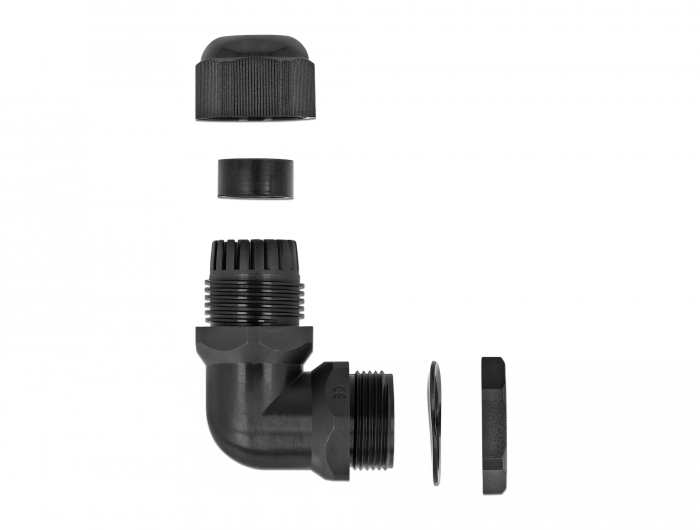

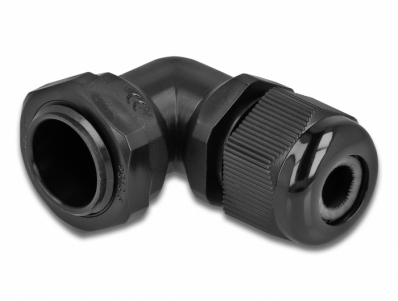

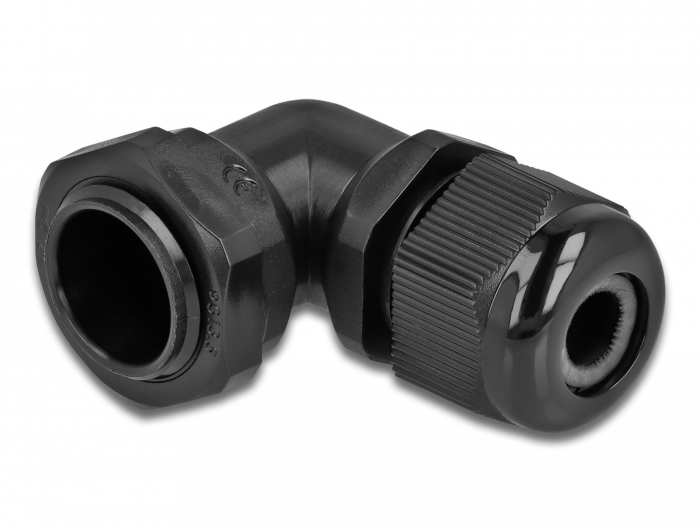

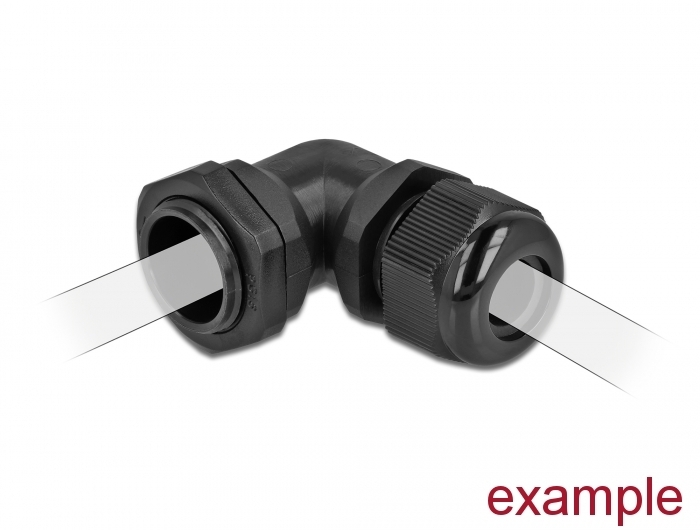

This cable gland by Delock allows a watertight seal to the housing for the lead-through of cables and electrical tubes. The angled design is perfectly suited to use the cable gland in installation areas with limited space.

IP68 dust and waterproof
The cable gland also offers increased protection against dirt and moisture.

Multifunctional application
Due to the robust design, cable glands are often used in automation and machine systems.
Specification:
• Thread size: PG13.5
• Thread length: 9 mm
• Spanner width: 24 mm
• Protection class: IP68
• Cable diameter:
  min.: 6 mm
  max.: 12 mm
• Operating temperature: -40 °C ~ 100 °C
• Material: plastic
• Colour: black RAL9005
Package content:
• Cable gland
Data sheet:
http://www.delock.de/produkt/60298/pdf.html?sprache=en
