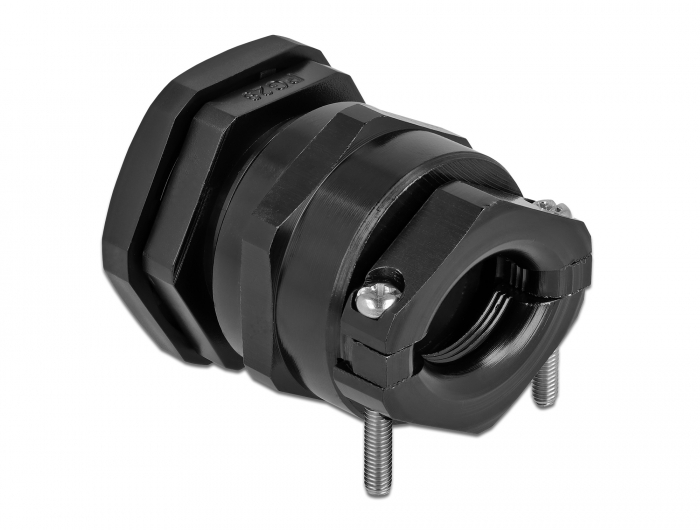

Delock Cable Gland PG29 with strain relief and bending protection black

DELOCK

60361

New

This cable gland by Delock allows a watertight seal to the housing for the lead-through of cables and electrical tubes.

Additional protection through strain relief
The screw-on strain relief fixes the cable and protects it from excessive bending, e.g. in machinery. The cable remains in their original position even during vibrations and they cannot fall out.

IP68 dust and waterproof
The cable gland also offers increased protection against dirt and moisture.

Multifunctional application
The robust design is ideal for use in automation, the robotics industry and machinery.
Specification:
• Thread size: PG29
• Thread length: 12 mm
• Spanner width: 41 mm
• Protection class: IP68
• Cable diameter:
  min.: 18 mm
  max.: 25 mm
• Operating temperature: -40 °C ~ 100 °C
• Material: plastic / metal
• Colour: black RAL9005
Package content:
• Cable gland
Data sheet:
http://www.delock.de/produkt/60361/pdf.html?sprache=en
