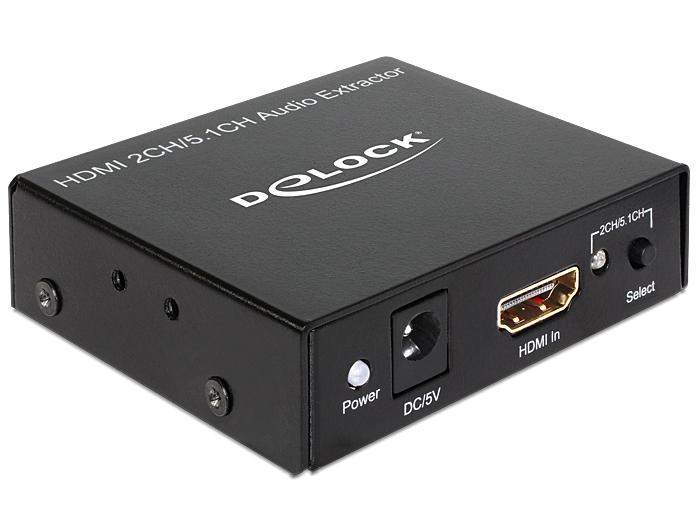

Delock HDMI Stereo 5.1 Channel Audio Extractor

DELOCK

62492

New

This adapter can be used to extract the audio signal from an HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) and analog (stereo) to other devices such as headphones or a surround receiver.

More details

Description:
This adapter can be used to extract the audio signal from an HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) and analog (stereo) to other devices such as headphones or a surround receiver.

Specification:

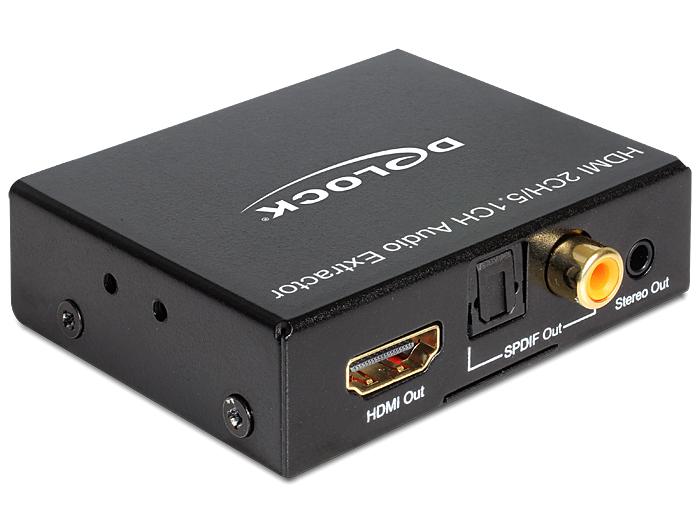

• Connector:
2 x HDMI-A female (Input and Output)
1 x 3,5 mm Stereo female (Stereo Audio)
1 x TOSLINK (S/PDIF)
1 x RCA (S/PDIF)

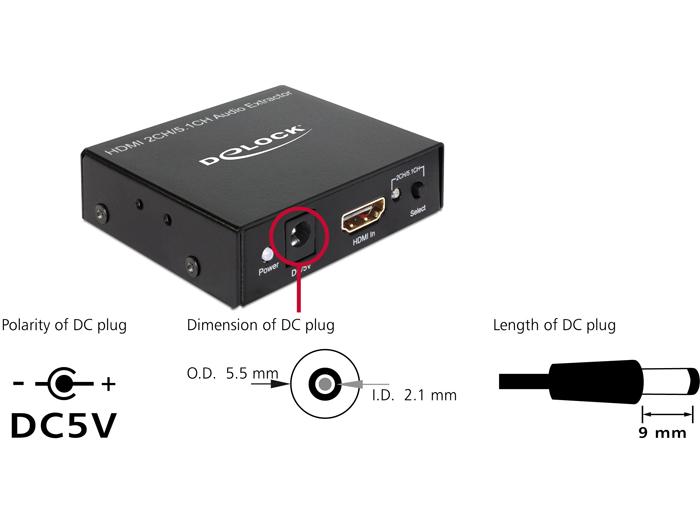

1 x DC Power 5 V
• Switchable between stereo and 5.1 channel
• Compatible with HDMI 1080p, 3D and HDCP
• Video bandwidth up to 225 MHz / 2.25 Gb/s per channel,
6.75 Gb/s maximal
• Supports all common 2.0 und 5.1 audio formats
(LPCM, DTS Digital, Dolby Digital, 32-192 kHz)
Robust metal housing
• Power consumption: max. 2.5 W
• Dimensions (LxWxH): 70 x 60 x 20 mm

System requirements:

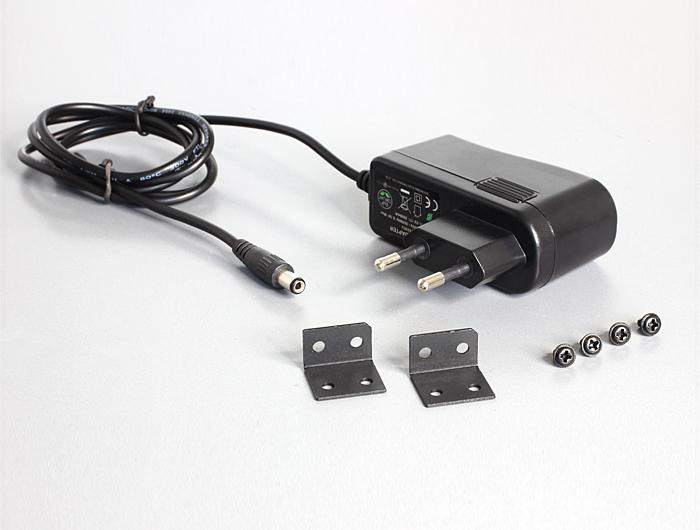

Package content:
• HDMI Audio Extractor
• Mounting brackets and screws
• Power supply 5 V
