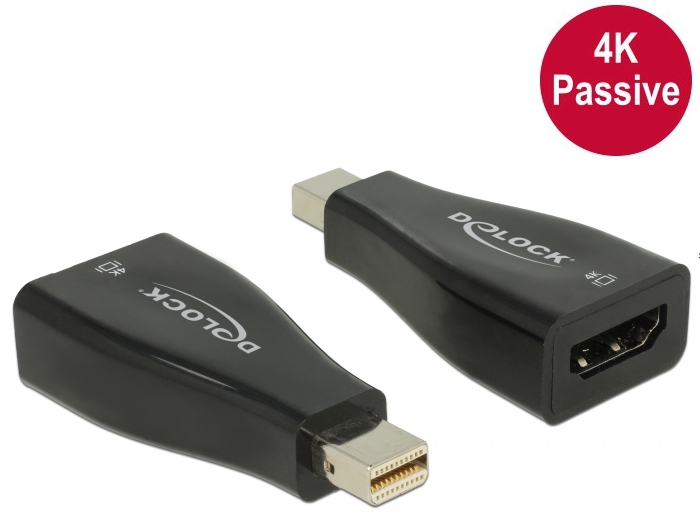

Delock Adapter mini Displayport 1.2 male > HDMI female 4K Passive black

Reference 65864

Condition: New

More info

This adapter by Delock enables the connection of an HDMI monitor to the system via a free mini Displayport interface. The adapter supports a resolution up to 4K Ultra HD at 30 Hz and is backward compatible to Full-HD 1080p.

System requirements:
• One free mini Displayport DP++ female

Specification:
• Connectors:
1 x mini Displayport 20 pin male >
1 x HDMI-A 19 pin female
• Chipset: TI SN75DP149
• Displayport 1.2 and High Speed HDMI specification
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Resolution up to 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
• Supports 3D displays (1080p @ 120 Hz)
• Gold-plated connectors
• Dimensions incl. connector (LxWxH): ca. 46 x 21 x 12 mm
• Colour: black
• OS independent, no driver installation necessary

Package content:
• Adapter mini Displayport to HDMI

Data sheet:
http://www.delock.de/produkt/65864/pdf.html?sprache=en
