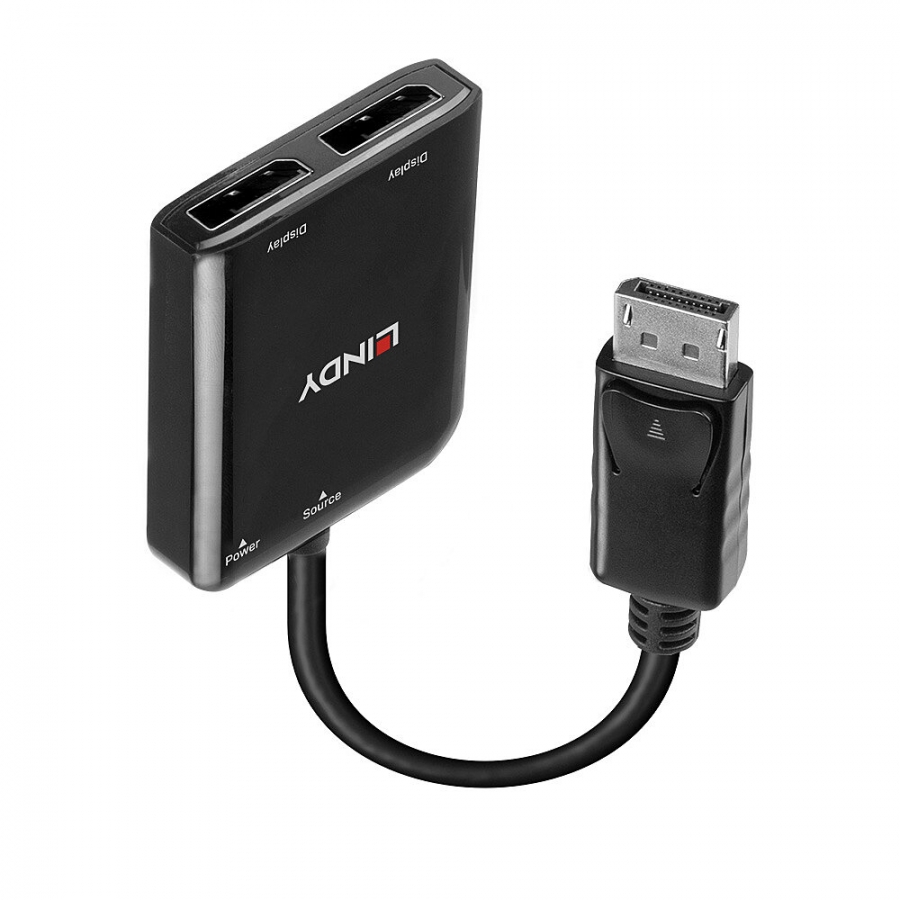

Lindy 2 Port DisplayPort 1.2 MST Hub

Specification

• AV Interface: DisplayPort
• Interface Standard: DP 1.2
• Supported Bandwidth: 21.6Gbps
• Maximum Resolution: 2 x 3840x2160@30Hx 4:4:4 8bit
• HDCP Support: HDCP 1.4
• Supported Audio: Up to 7.1CH
• Separate Audio Ports: -
• CEC Support: -
• Serial Interface: -
• Special Features: -

Connectors

• Input: DisplayPort (Male)
• Output: 2 x DisplayPort (Female)
• Control: -
• Power: Micro-USB (Female)

Physical Properties

• Dimensions (approx.) WxDxH: 254x49x10mm (10x1.93x0.39in)
• Housing Material: ABS
• Net Weight: 0.055kg (0.12lb)
• Operating Temperature: -20°C - 40°C (-4°F - 104°F)
• Storage Temperature: -40°C - 80°C (-40°F - 176°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: 5V0.5A
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194x10mm (6.85x7.64x0.39in)
• Gross Weight: 0.062kg (0.14lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, UL & REACH

Package Contents

• DisplayPort MST Hub

Purchasing Information

• No.: 38430
• EAN: 4002888384308
