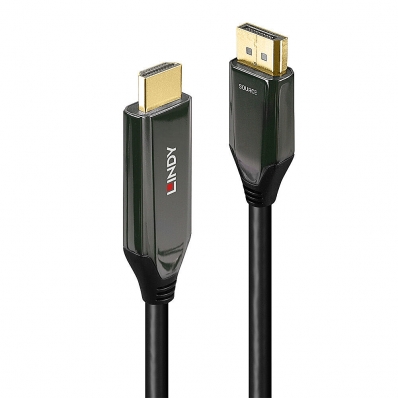

Lindy 1m Active DisplayPort 1.4 to HDMI 8K60 Cable

Lindy

LIN40930

New

Connectors

  • Connector A: DisplayPort Male
  • Connector B:  HDMI Type A Male
  • Chipset: VM7100
  • Housing Material: Zinc Alloy
  • Connector Plating: Gold Plating
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold Plating
  • Dimensions (approx.) WxDxH:
    • DisplayPort: 50x20x8mm (1.97x0.79x0.31in)
    • HDMI: 60x20x8mm (2.36x0.79x0.31in)



Cable Construction

  • Length: 1m (3.28ft)
  • Standard: DisplayPort 1.4, HDMI 2.1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.5mm (0.22in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 32AWG
  • Shielding: Tinplate



Specifications

  • Supported Bandwidth: 48Gbps
  • Maximum Resolution: 7680x4320@60Hz 4:4:4 10bit
  • Nominal Attenuation: 100MHz-10GHz ≤ 24dB
  • Minimum Bend Radius: 33mm (1.3in)
  • Operating Temperature: -20°C - 40°C (-4°F - 104°F)
  • Storage Temperature: -40°C - 80°C (-40°F - 176°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH, UL & California Proposition 65



Purchasing Information

  • No.: 40930
  • EAN: 4002888409308



This product is also available in other lenghts

  • 40930 - 1m (3.28ft)
  • 40931 - 2m (6.56ft)
  • 40932 - 3m (9.84ft)
